Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या YD-FIC-SCA-D
न्यूनतम आदेश मात्रा 500PCS
मूल्य Negotiable
पैकेजिंग विवरण 10pcs / blister box,1200pcs / carton box
प्रसव के समय 3-5 working days after get payment
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 10,000pcs per day

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
हाई लाइट

quick assembly connector

,

mechanical splicer

एक संदेश छोड़ें
उत्पाद विवरण

CATV Quick Assembly Connector SC, SC / UPC Fast Installation Connector Blue



Sell point:



1. pre-polished and curing ceramic ferrule

2. pre-embedded fiber optic fiber G657A1

3. Length: 53 mm (boot to the top of the dust cap )

4. Cable stripper length: 18mm / 10mm

5.  SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose

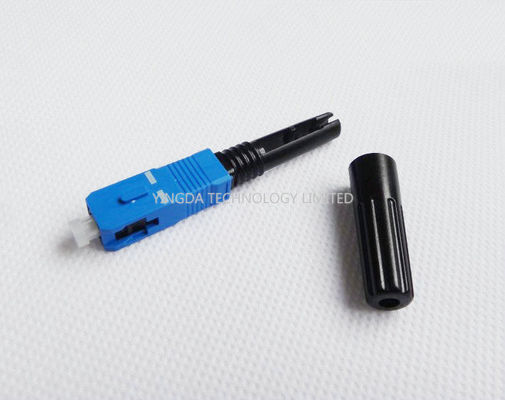

Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network 0



Description



SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector,

most people call it fast connector for short. It is a kind of connector, it is used in field wiring

operation and FTTH projectwhere need fast and stable connection. Because it has embedded

fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus

offer quicker help to installation, maintenance,repair and fiber to the home for engineers.



The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face

good quality, and effectively protect the user equipment interface from damage, reduce

the connection attenuation loss.





Features



1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.



Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network

 Specification



Applicable for

3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable

Optical fiber diameter

125um (G652D,G657A1,G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.3dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

>5N

Fastening strength of naked fiber holder

>10N

Tensile strength

>50N

Using temperature

-45~+80℃

On-line tensile strength(20N)

△IL≤0.2dB △RL≤5dB

Mechanical durability(500times)

△IL≤0.2dB △RL≤5dB

Drop-off test

(drop-off height 4m,

once per direction,totally 3times)

△IL≤0.2dB △RL≤5dB





Order information

  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2

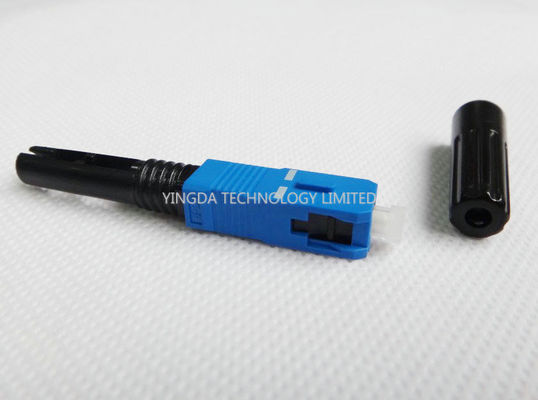

Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network 1

Fast Connector connect with drop cable  then can do patch cord as below:

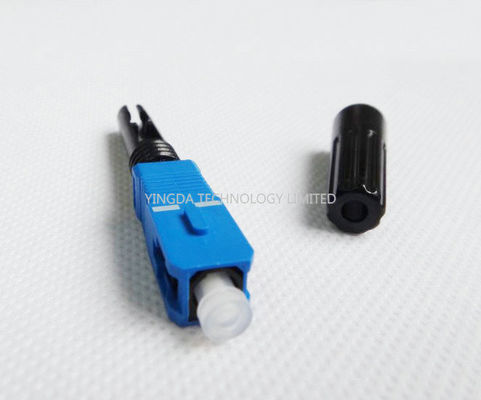

Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network 2

Package methods:

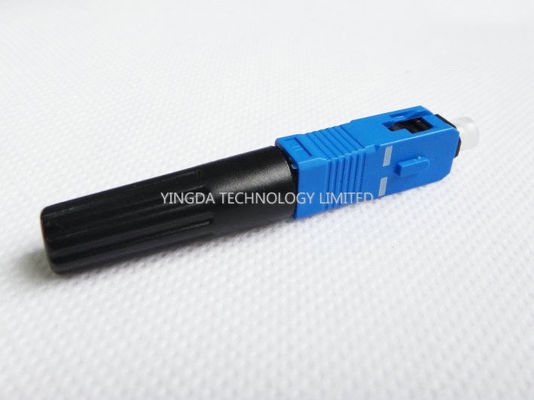

Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network 3

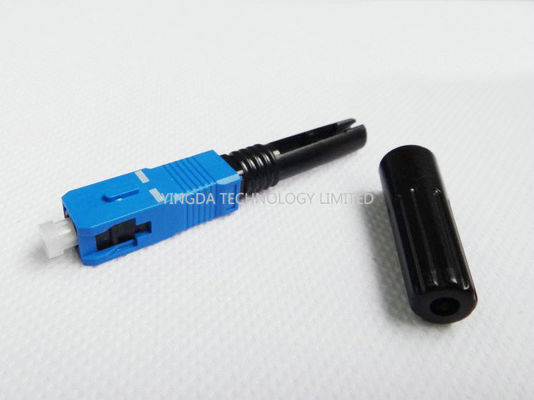

Quick Assembly Connector SC , Field Installation Connector Blue For CATV / LAN Network 4
