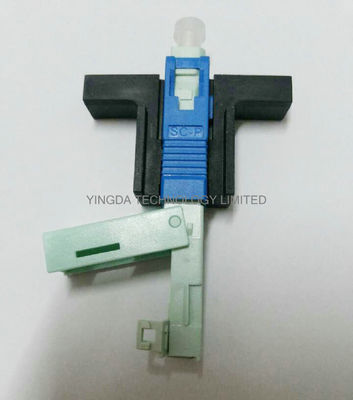

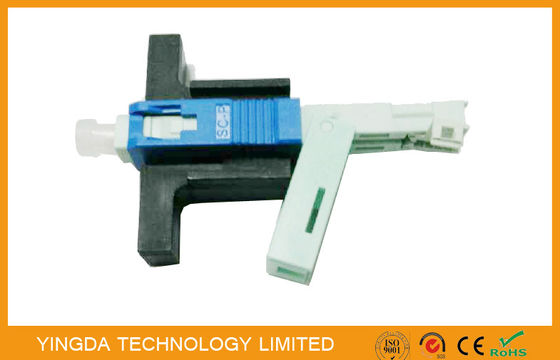

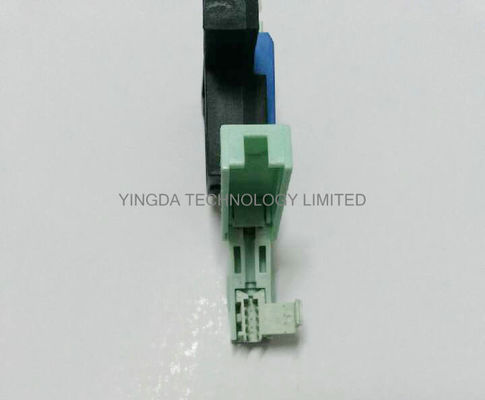

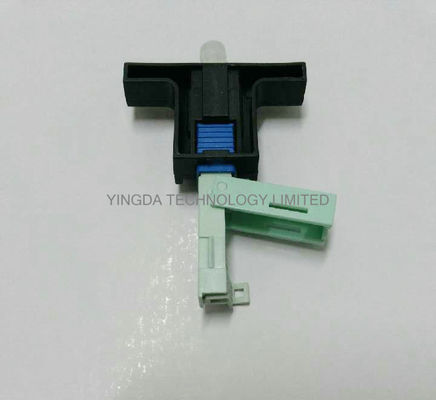

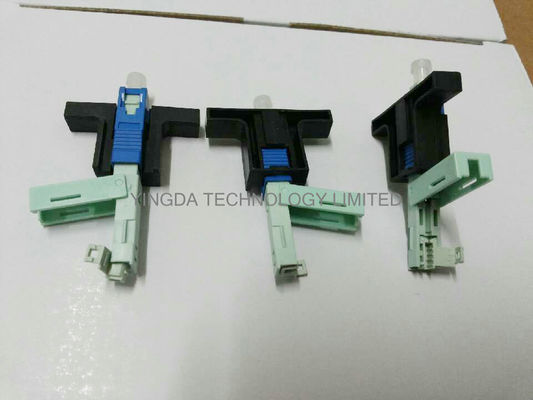

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover
उत्पत्ति के प्लेस | चीन |
---|---|
ब्रांड नाम | YINGDA |
प्रमाणन | ISO SGS ROHS |
मॉडल संख्या | YD-FIC-SC/UPC-E |
न्यूनतम आदेश मात्रा | 500PCS |
मूल्य | Negotiable |
पैकेजिंग विवरण | 1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton |
प्रसव के समय | 5 working days after received your payment |
भुगतान शर्तें | T/T or western Union |
आपूर्ति की क्षमता | 500,000pcs per month |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xmaterial | Plastic | house color | blue |
---|---|---|---|
fiber type | single mode | back cover | yes, black |
insertion loss | <0.3dB | return loss | >45dB |
pack | plastic bag and box | total length | 53mm |
हाई लाइट | quick assembly connector,FTTH connector |
Field Mountable Fiber Optical Connector (FMC), Mechanical SC Connector With Back Cover
Sell point:
1. SC / PC, cover type, the total length 53mm
2. Apply to 2mm* 3mm drop fiber cable
3. Ceramic C-groove structure, good sealing performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥45dB
6. No need epoxy or polished, field-installable, factory embedded fiber
Description
SC / PC Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector
used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and
mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation the structure of crimping position
is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber
pre-installed structure, and convenient for field installation.
Features
- Precise mechanical dimensions
- Low insertion loss, high return loss
- Comply standard of IEC61754-4
- Repeatable times is no less than 50 times;
- Long life span design, more than 30 years.
- Provide Open flow and Pre-cast type of products
- Adopting fiber pre-installed structure
- Convenient for field installation
- No epoxy or polishing required, easy assembly in the field
- Fiber termination can be reset, save time and energy ,reduce scrap
- No need special too, readily available
Specification
Type |
Parameters |
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Bare fiber strength |
>5N |
Clad strength |
>10N |
Tension |
>50N |
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature |
5 ºC to +70 ºC |
Application
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber / Home (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
