Metal Auto Shutter SC APC Fiber Optical Adaptor Simplex Compliant with ANSI Bellcore
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xFiber count | simplex adapter | connector material | plastic |
---|---|---|---|
adapter color | green | sleeve material | ceramic |
fiber type | singlemode | polish mode | APC |
insetion loss | < 0.2dB | house material | ABS |
connector | SC | shutter material | metal |
हाई लाइट | फाइबर ऑप्टिक युग्मक,फाइबर ऑप्टिक एडाप्टर |

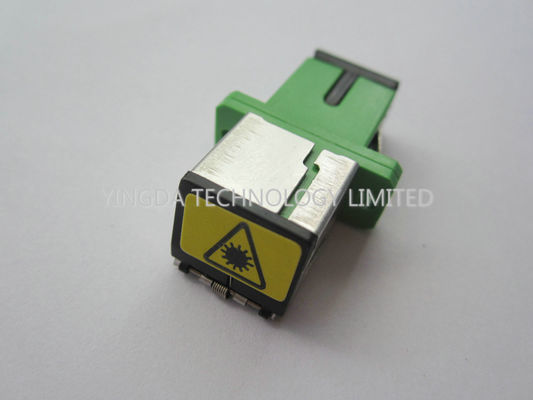

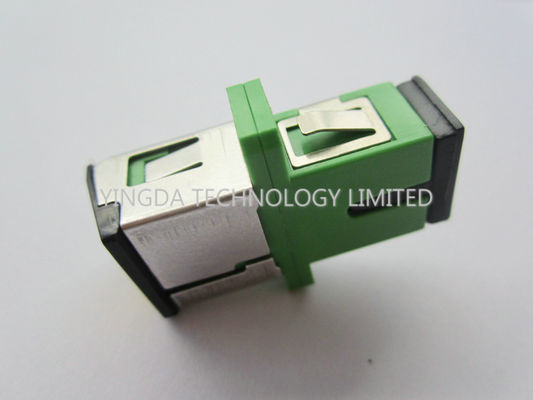

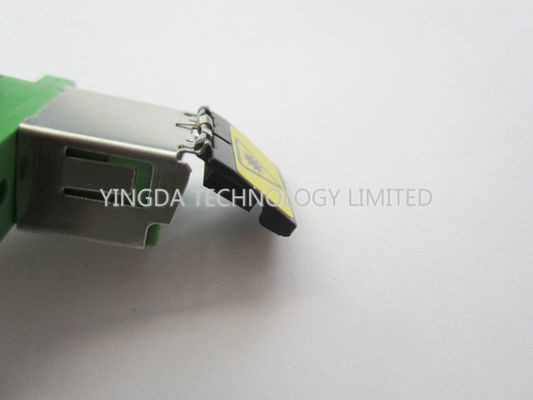

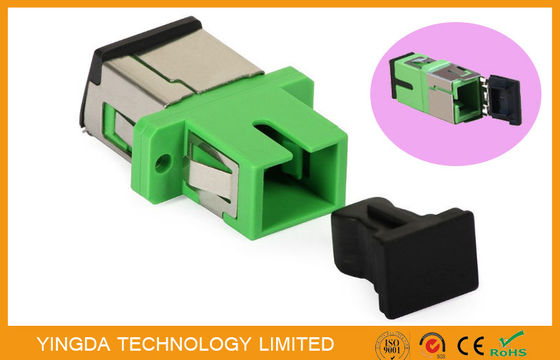

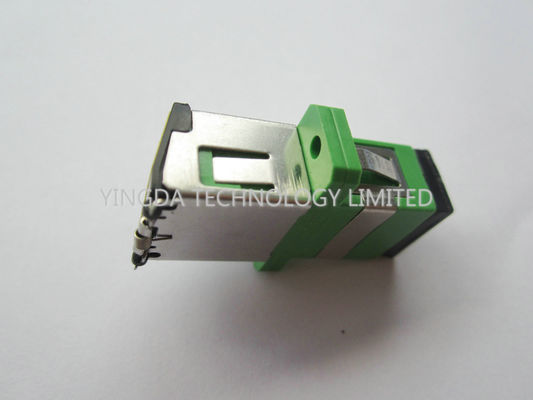

SC Auto Shutter Adapter, Metal Shutter SC APC Fiber Optical Adaptor Simplex
SC simplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters
are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered
adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the
same precision and optical performance as the normal adapter.
YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are
available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types.
The connector color can be blue, green, gray or aqua. It is used to align and join two or more
fiber-optic connection, to ensure alignment of two fiber-optic connections.
Features
- Compliant with: ANSI, Bellcore, TIA/EIA standards
- Dust caps protect against debris and contamination
- Low insertion <0.2dB
- high return loss >55dB
- Active device termination
Application
- Telecommunication
- CATV
- Data Communications
- Instrumentation
- Local Area Networks
Specification
Characteristics |
Conditions |
Values |
Durability |
500times |
<0.2dB |
Temperature Cycling |
-40 ~ +80℃ (42Cycles) |
<0.2dB |
Humidity Cycling |
75℃, 95%/336hr |
<0.2dB |
Vibration |
10~55Hz(2hr) |
<0.2dB |
Impact |
1.5m drop, 8times |
<0.2dB |
Order information
Connetor type |
SC, LC |
Cable type |
SM, OM1, OM2, OM3, OM4 |
Fiber count |
Simplex, duplex, quad |
Sleeve |
Ceramic, Phosphor bronze |
Connector color |
Blue, green, beige, aqua, purple |
Shutter material |
Plastic, metal |
Polish method |
UPC, PC, APC |
