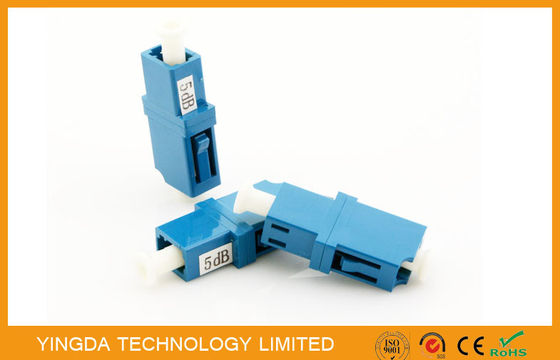

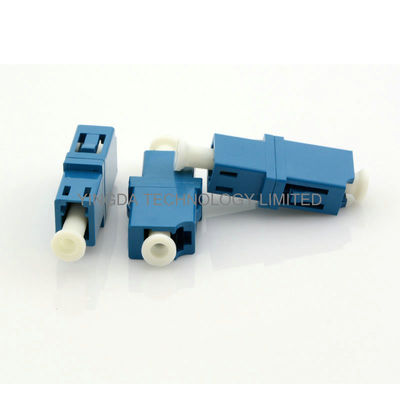

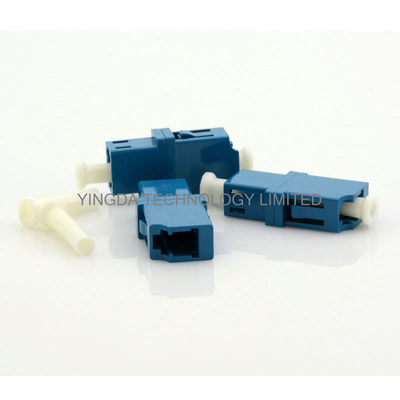

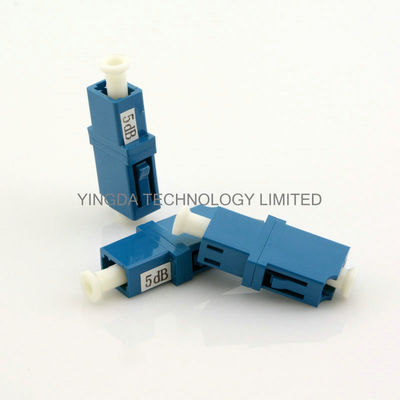

LC PC Fixed Fiber Optic Attenuator 5dB Blue White Dust Cap GR910 , IEC Standard
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xAttenuation | 5dB | wavelength range | 1260-16500nm |
---|---|---|---|
test wavelength | 1310nm, 1550nm | material | plastic PBT |
Additional loss | 0.1dB | Working temperature | -40~+85 (℃) |
Fiber optic type | single mode | standard | GR910, IEC |
connector | LC/UPC | connector color | blue |
हाई लाइट | optical fiber attenuator,inline optical attenuator |
LC PC Fixed Fiber Optic Attenuator, Optic Fiber Attenautor Fixed 5dB Blue White Dust Cap
Optical attenuator is a kind of precise instrument which provide different attenuation values according
to the need of the project. Attenuation method of the product are: attenuate through the gap between
the optical fiber, attenuate according to The contact part of the leaky, and attenuate according to
attenuation fiber.
Features
- Conforms to GR910 and IEC standard
- Various attenuation way, all kinds of connectors available
- Low insertion loss and additional loss
- High attenuation accuracy
- High return loss, compact size, light weight
- High stability, high reliability
- 100% test with report
Specification
Item |
Attenuation/dB |
Precision error (dB) |
Working wavelength |
Return loss(dB) |
Connector type |
Coupler type |
1—2 |
≤±0.25dB |
1310nm/1550nm |
≥35dB |
FC;SC/PC |
3—15 |
≤±10%dB |
1310nm/1550nm |
≥35dB |
FC;SC/APC |
|
15-30 |
≤±1.5dB |
1310nm/1550nm |
≥35dB |
|
Application
- Optical fiber communication system
- Fiber optic data communication network
- Optical fiber CATV network
- Other optical testing technology
- FTTH / PON network
