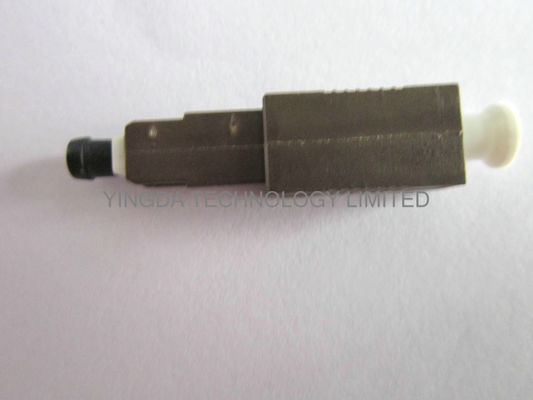

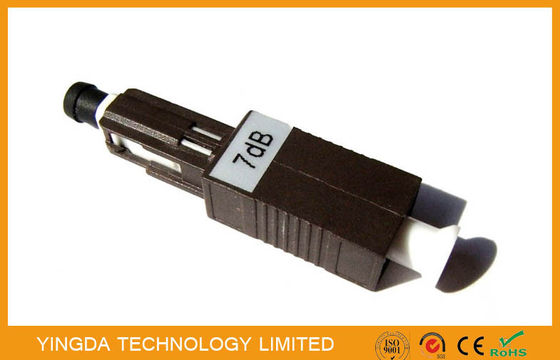

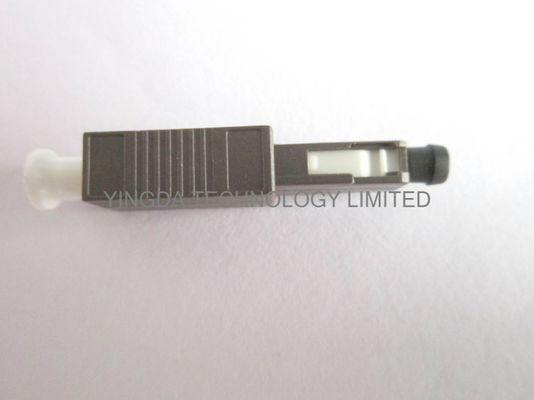

Plastic MU Build Out 7dB Fiber Fixed Optical Attenuator Plug - in Type MU 10dB

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या ATTN-MU-01-B07
न्यूनतम आदेश मात्रा 100PCS
मूल्य Negotiable
पैकेजिंग विवरण 1 pc / plastoc bag
प्रसव के समय 3-5 days
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 50,000pcs per month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Attenuation 7dB, 10dB test wavelength 1310nm, 1550nm
body material plastic Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
industry standard Telcordia TA-NWT-001209 connector type MU
dust cap color black connector shape female to male attenuator
हाई लाइट

build out attenuator

,

optical fiber attenuator

एक संदेश छोड़ें
उत्पाद विवरण

FC/APC Female To Male Attenuator (FC APC F-M ), Plug-in Type Optical Attenautor





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.





Features



  1. Zirconia sleeve
  2. Increases panel density and quick plug in installation
  3. New SC footprint for duplex and 4 way design, more compact for most patch
  4. Compliant with Bellcore GR-910-CORE
  5. Compliant with ROHS and IEC
  6. High precision attenuation value

  7. Low additional loss

  8. High durability

  9. High reliability and stability

  10. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃
