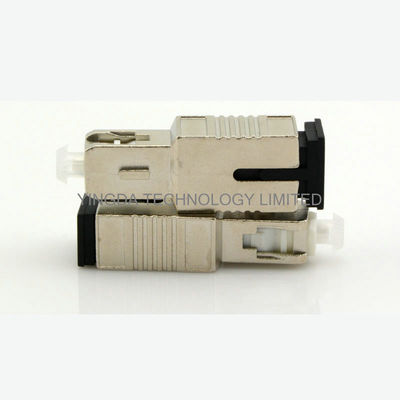

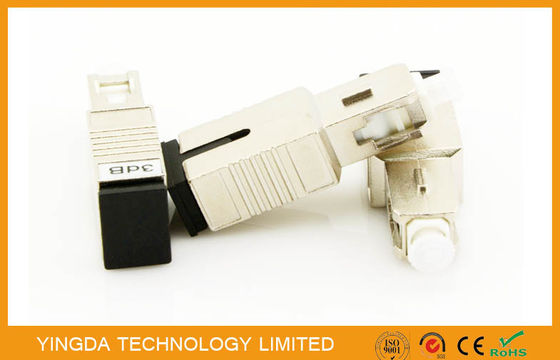

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या ATTN-SCF-01-B03
न्यूनतम आदेश मात्रा 100PCS
मूल्य Negotiable
पैकेजिंग विवरण 1 pc / plastoc bag
प्रसव के समय 3-5 days
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 50,000pcs per month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Attenuation 2dB test wavelength 1310nm, 1550nm
body material Plastic Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode
industry standard Telcordia TA-NWT-001209 connector type SC/PC
color dust cap: white, connector body: blue connector shape male female type
हाई लाइट

build out attenuator

,

optical fiber attenuator

एक संदेश छोड़ें
उत्पाद विवरण

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH





Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃





Order information



Attenuator

Item

Adapter type



FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)

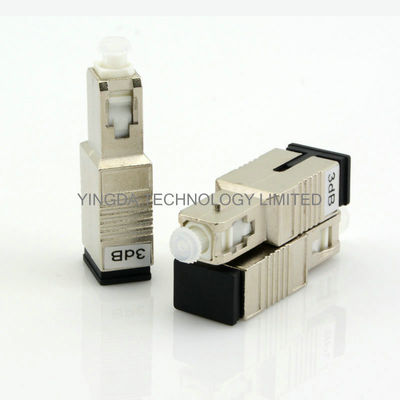

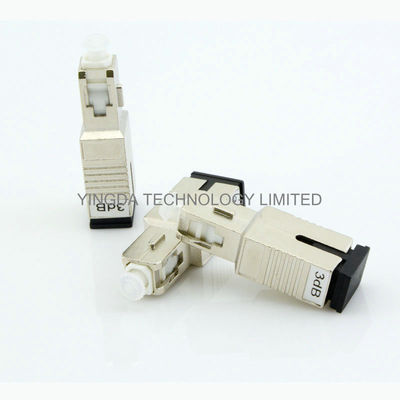

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 0Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 1



Other types female to male attenuator



Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network 2
