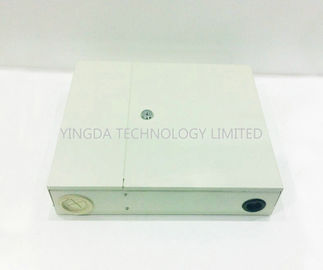

Two Door single / multi mode Fiber Optic Termination Box Cold Rolled Steel Sheet Material
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xmaterial | cold rolled steel | color | white |
---|---|---|---|
max capacity | 24 fibers | adapter | FC SC ST LC |
cable ports | 4 Pcs | application | FTTH FTTX FTTB ODN PON network |
dimension | 350*300*80mm | thickness | 1.0mm |
fiber type | singlemode, mulitmode | ||
हाई लाइट | फाइबर ऑप्टिक जंक्शन बॉक्स,फाइबर ऑप्टिक वितरण बॉक्स |
Indoor Two Door Wall Mounted Fiber Terminal Box, Fiber Optic Termination Box Wall Mount
Wall Mount Fiber Optic Cable Distribution Box GP(05)D series is distribution equipment to connect,
protect and management the fiber and cable in fiber optic communication networ. It consist of
termination access module and rack. The device can realize the optical fiber fixed, ground protection,
optical fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.
Advantage:
- Cold rolled steel sheet,electrostatic spraying.
- Available for 24pcs adapters FC,ST,SC,LC
- Wall mount
- max capacity: 24cores
- Dimension: 350*300*80mm ,small size
- package: plastic bag,bubble bag,then carton box
- 1 year guarantee

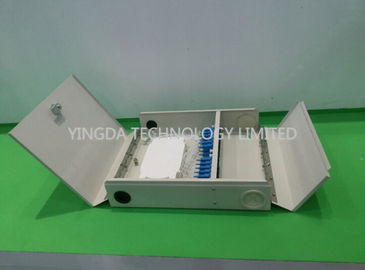

- two door open, with individual key, safe and easy to operate and convenient.
Features
- Available for small capacity communication system,wall mounting,compact structure,harmonized with machine room

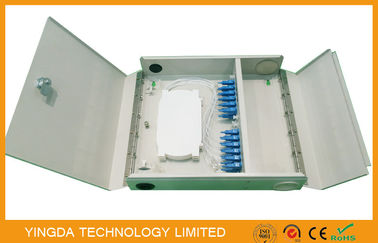

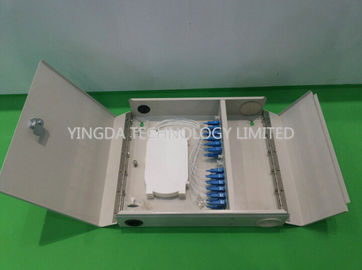

- The cabinet is composed of two parts,one links with optical cables for fusion
- connection between optical cable and fiber pigtail and another links with patch cord.
- Provide fusion and storage for optical cables
- Reliable protection appliance of fixing,stripping and earthing for optical cables.
- Whole range protected design for fiber lay to ensure the bending radius=40mm
- Provide various accessories to avoid any unexpected damage to the fiber
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size (mm) |
GW. (kg) |
Qty/carton (pc) |
GP(05)D-FC24 |
350*300*80 |
24 |
405*355*605 |
19.5 |
5 |
GP(05)D-SC24 |
350*300*80 |
24 |
405*355*605 |
19.5 |
5 |
Electrical and Envrionment properties
Connector attenuation (insertion, exchange, repeat) |
≤ 0.3dB |
Return loss: |
APC≥60dB,UPC≥50dB,PC≥40dB |
Insulation resistance |
≥1000MΩ/500V (DC) |
High voltage |
3000V (DC) /1min, no breakdown, no arc. |
Grounding wire cross-sectional area |
>6mm2, obvious grounding symbol |
working temperature |
-40 degrees ~+70 degrees |
storage temperature |
-40 degrees ~+70 degrees |
Humidity |
<90% 3: (+30 C) |
atmospheric pressure |
62Kpa ~ 106Kpa |
Service life |
20years |
Application
- Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
- patch cord storage and management, optical fiber fixed connected and cross connection;
- It also can install optical splitters, wave division multiplexer WDM and other value-added module according to the requirements of customers.
- Terminate, use and manage between wiring room and equipment room.
