Fiber Optic Attenuator 1dB 2dB 3dB

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या ATTN-MU-01-B07
न्यूनतम आदेश मात्रा 100PCS
मूल्य Negotiable
पैकेजिंग विवरण 1 pc / plastoc bag
प्रसव के समय 3-5 days
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 50,000pcs per month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Attenuation 1dB - 20dB fix test wavelength 1310nm, 1550nm
body material metal Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
industry standard Telcordia TA-NWT-001209 connector type SC/APC
dust cap color Green connector shape female to male attenuator
हाई लाइट

build out attenuator

,

optical fiber attenuator

एक संदेश छोड़ें
उत्पाद विवरण

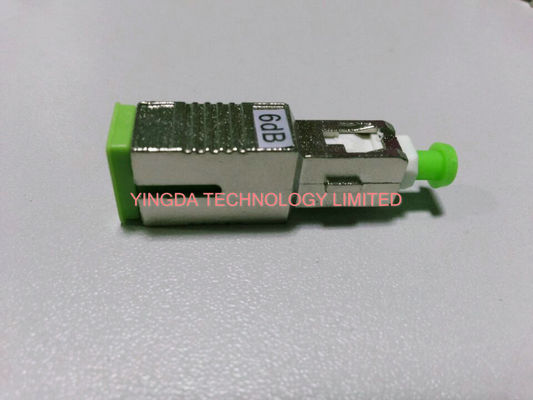

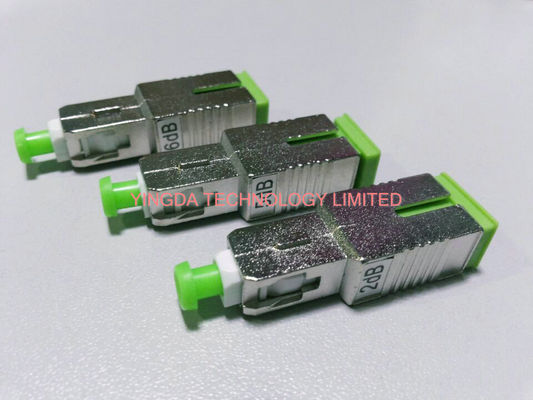

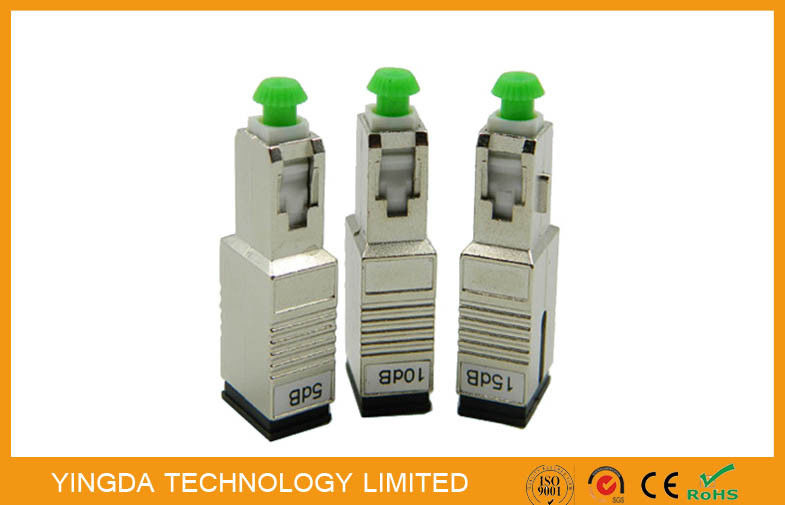

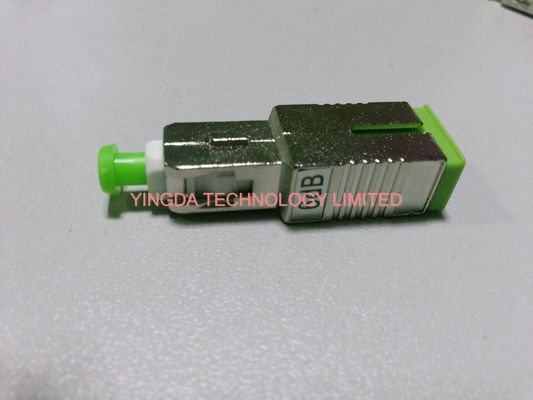

Build Out Fiber Optic Attenuator SC APC 1dB, 2dB, 3dB, SC Attenuator Optic Fiber





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.



Features:

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type

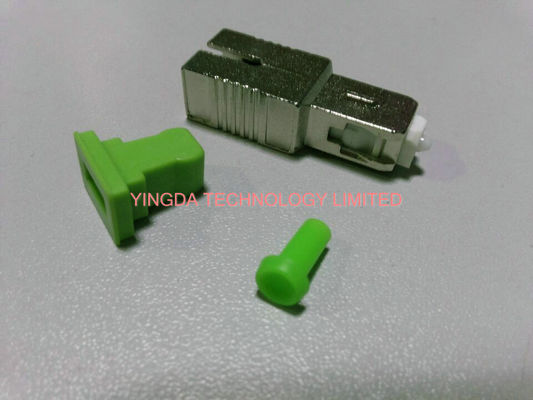

Material:

  • metal Housing
  • Ceramic Zirconium Sleeve
  • dust cap color; green for APC, black for UPC



Specification:



Return Loss:

Less than 50 dB (SPC)



Less than 55 dB (UPC)



Less than 65 dB (APC)

Attenuation Accuracy:

+/-0.5 (1-10)



 +/-1.0 (11-30)

Polarization Dependent Loss:

Less than 0.2dB

Maximum Optical Input Power:

200mW

Operating Temp. Range:

-40 ~ 80°C
