Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या JW3105P
न्यूनतम आदेश मात्रा 1 piece
मूल्य Negotiable
पैकेजिंग विवरण 1pc per box
प्रसव के समय 3 days

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Central Wavelength 650nm±10nm Output Power 1mw, 3mw, 5mw,10mw on actual needs
Operating Model Both CW and Pulse available dimension diameter 15X180 mm
net weight 120g(Without battery) Emitter Type FP-LD
Optical Connector 2.5mm universal connector or 1.25mm Power Supply 2 x AA alkaline batteries
हाई लाइट

fiber optic tool kits

,

fiber termination kits

एक संदेश छोड़ें
उत्पाद विवरण

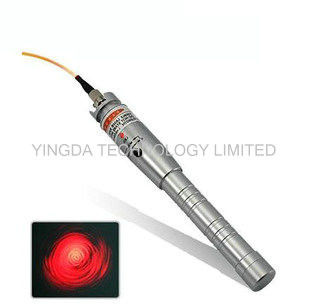

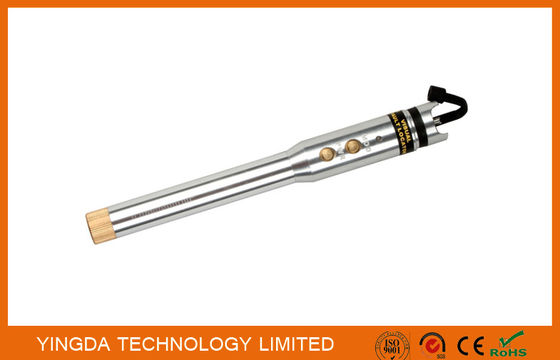

Fiber Tool Kits Pen-type Visual Fault Finder Locator VFL Optical Fiber FP-LD Emitter 10Mw





The JW105 Pentype VFL is specially designed for field personnel who need an efficient and

economical tool for fiber tracing, fiber routing and continuity checking in optical network.



It includes:

  • Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
  • Finding the faults of OTDR dead zone
  • End-to-end visual fiber identification



Features

  1. 2.5mm universal connector, for 1.25mm connectors,
  2. FC (Male)-LC (Female) convertor can be provided on requests.
  3. Operates either in CW or Pulsed
  4. Constant output power
  5. Lower Battery warning
  6. Long battery life (up to 60 hours)
  7. Crash-proof and dust-proof design for laser head
  8. Laser case ground design prevents ESD damage
  9. Burning testing to ensure the reliability.
  10. Portable and rugged, easy to use
  11. Guarantee to CE standards include EMC, EMI, ROHS



Specifications

Type

JW3105 Pen-type Visual Fault Finder

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for 1mw, 3mw, 5mw,10mw on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2  AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hour

650nm@3mw ≥50hour

650nm@10mw≥15hour

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature

-10~+45 (℃)

Storage Temperature

-40~+70 (℃)

Dimension (mm)

¢15X180

Weight

120g(Without battery)

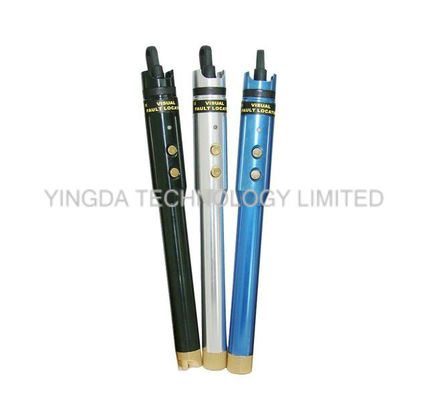

RemarkColors can be customized on request when meets certain qty!



Standard Packages

MODEL

INCLUDES

JW3105 P

Main Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and

Soft Carrying case.
