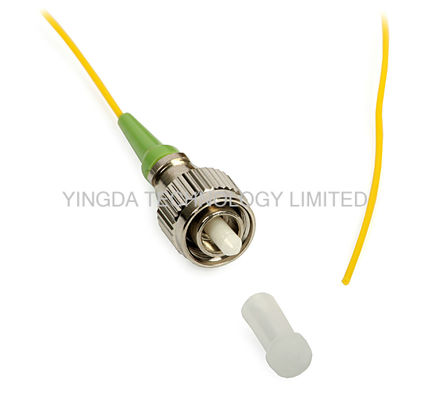

Pigtail OS1 FC APC Simplex SM 0.9mm 3Meter Fiber Optic Cable Yellow

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या FPG-FCA-SO1-09-1.5-Y
न्यूनतम आदेश मात्रा 100PCS
मूल्य Negotiable
पैकेजिंग विवरण 1pc in a plastic bag, customer logo or label design ok

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Fiber type singlemode fiber count 1 fiber
cable type fiber optic cable diameter 0.9mm
cable length 1.5 meter connector boot green
polish mode APC connector FC
cable color yellow or white buffer tube loose buffer or tight buffered
OEM OK
हाई लाइट

पनरोक बेनी

,

रिबन बेनी

एक संदेश छोड़ें
उत्पाद विवरण

Pigtail OS1 FC APC Simplex SM 0.9mm 3Meter Fiber Optic Cable Yellow





FC Fiber Optic Pigtail was one of the most popular single-mode Pigtails. It use a 2.5mm ferrule,

but some of the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you

must make sure you have the key aligned in the slot properly before tightening. It's been mostly

replaced by SC and LC. However,due to easy assemblies and installation, YINGDA produced FC

Fiber Optic Pigtails are every competitive.



FC Fiber Optic Pigtail incorporates a Physical Contact (PC) curved polished fiber end face that

greatly reduce back-reflection over the regular FC Pigtail with flat end-face ferrule.



FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable

with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with

pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,

and low back reflection and optical loss, while ensuring maximum repeat-ability.



YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber

alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.





Features

  1. Low Insertion Loss
  2. High Return Loss
  3. Good Repeat ability
  4. Good Exchange ability
  5. High Temperature Stability
  6. Comply with YD/T 1272.4-2007 specification
  7. 8 Degree Angled physical contact polishing (APC)



Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks



Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

 (Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master);

 ≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

 7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1



Ordering Information


FC / APC SM 9/125 SIMPLEX 0.9mm –1M LSZH

  ①  ②          ③           ④             ⑤        ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

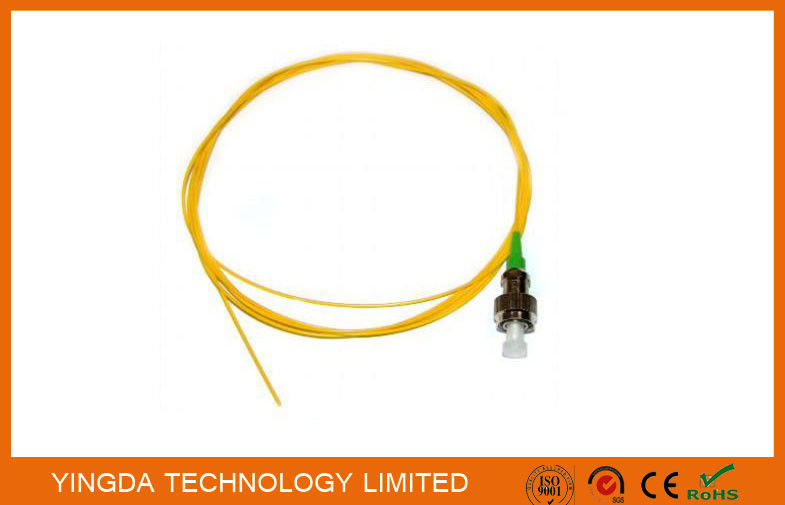

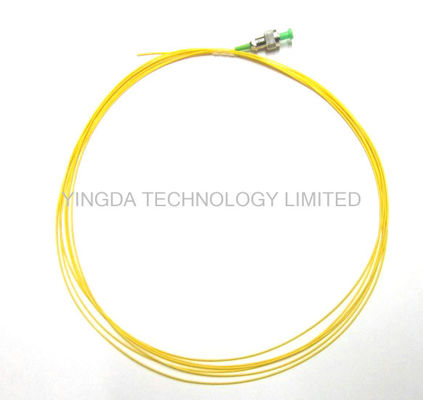

Pigtail with YELLOW cable jacket as below:



Pigtail OS1 FC APC Simplex SM 0.9mm 3Meter Fiber Optic Cable Yellow 0



Pigtail with WHITE cable jacket as below:



Pigtail OS1 FC APC Simplex SM 0.9mm 3Meter Fiber Optic Cable Yellow 1
