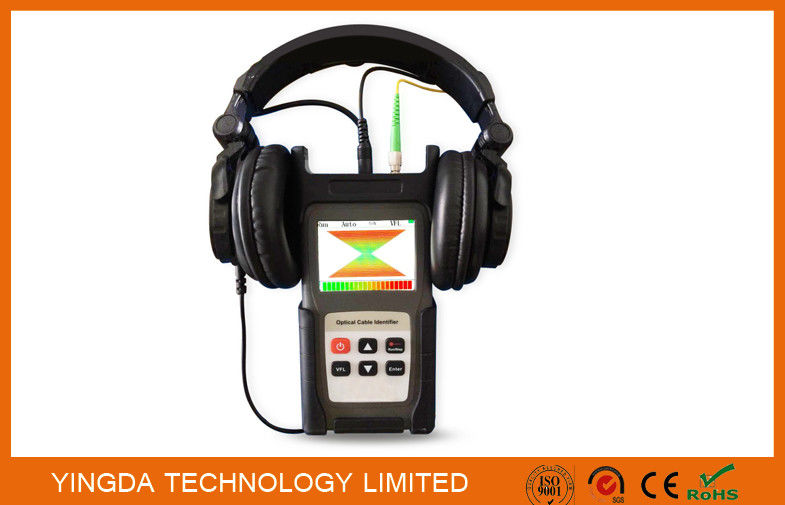

Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या JW6208
न्यूनतम आदेश मात्रा 1 pc
मूल्य Negotiable
पैकेजिंग विवरण 1pc / b ox

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
wavelength 1550 nm Interface type SC/APC (PC, ST interchangeable)
Output power -2dB, -1dB, -0.5dB, 0dB adjustable Detection methods single fiber testing, no loopback
Display 3.5'industrial screen Dimension 100*180*70mm
हाई लाइट

fiber optic tool kits

,

fiber termination kits

एक संदेश छोड़ें
उत्पाद विवरण



Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits





Features

  • Rapid and accurate identification
  • In optical cable project, we need to search the target cable accurately, the operator only need
  • to click the optical cable slightly, When operator click the targeted or wanted cable, JW6208
  • can response with sound and light reaction, so as to identify quickly and accurately.
  • Non destructive optical cable
  • Replace previous method of cutting, bending, and other frozen,
  • Beat mode recognition of target cable, completely does not damage the cable,
  • The maximum cost savings, improve efficiency.
  • The real one key type test, handheld design of portable and easy to carry, 3.5' color screen
  • real-time waveform.
  • The software of the intelligent struck the judgment of the two operation / display mode, combined
  • with the Headset real-time audio, with 3 kinds of recognition percussion method, so as to quickly and
  • accurately identify
  •  the measured cable



 1. according to the Headset feedback information, the operator can intuitive judgment

percussion cable,

 2. according to the waveform real-time cable, knock in the measured cable real-time

waveform will have obvious wave, visual disturbance

 3. the instrument built-in intelligent mode, knock in the measured cable screen showed

positive and negative Pyramid strength, and also outputs the notification sound



Specifications:



Wavelength:

1550nm

Detection methods

single fiber testing, no loopback

Output power

-2dB, -1dB, -0.5dB, 0dB adjustable

The maximum distance

 60/80Km

Interface type

SC/APC (PC, ST interchangeable)

Signal to noise ratio

40dB

Display

3.5'industrial screen

Short Troubleshooting

650 red light

Test results

1, 2, 3 real time audio waveform display, intelligent mode

Supply mode

1, 7.4V 3500mAh battery (replaceable) standby time >24H

(optional 10 minutes automatic shutdown)

continuous working time >20H

2, the 12V 2A DC power adapter

Dimension

100*180*70mm

The light weight:

490g (including battery) lightweight handheld portable easy belt design



Standard package



JW6208 body

1pc

Earpiece

1pc

User manual

1pc

Charger

1pc

Bag

1pc



Cable Survey Instrument Optical Cable Identifier 1550nm 60Km / 80Km , Fiber Tool Kits 0
