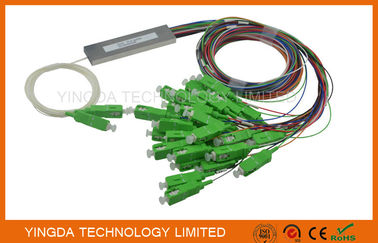

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M

उत्पत्ति के प्लेस चीन
ब्रांड नाम yinga
प्रमाणन ISO,SGS,ROHS
मॉडल संख्या PLCS-MD-232-1323
न्यूनतम आदेश मात्रा 50pcs
पैकेजिंग विवरण 1pc/box
प्रसव के समय 5-8days
भुगतान शर्तें Western Union, T/T, MoneyGram

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
fiber mode G657A1 split ratio 2x32
connector SC/APC cable jacket LSZH
Fiber input/output length 1.5meter test report yes
steel tube size 60*7*4mm mini module size 80*20*6mm
customer logo label on the steel tube working wavelength 1260~1650nm
working temperature ~40+85°C
हाई लाइट

फाइबर ऑप्टिक फाड़नेवाला

,

पीएलसी अलगानेवाला

एक संदेश छोड़ें
उत्पाद विवरण



2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M





Features

  • Without breakout kits to realize the 0.9MM loose tube optical fiber multichannel output directly
  • compact size.
  • wide working range: 1260-1650nm
  • Different connectors available, standard is SC.
  • Insensitive to wavelength, light uniformity, high and low temperature resistance,etc
  • Technical performance: conforms to Telcordia GR-1209 and GR-1221 and
  • reliable requirements and YD/T893 industry standard.



PLC chip

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 0

Steel tube size:60*7*4mm

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 1

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 2

Mini module size:80×20×6mm





Main application



Install in the cable distribution box, module box, splice closure or the wiring box,etc

For example:

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 3



PLC splitter Specifications



1×N PLC Splitter

 Parameters

1X2

1X4

1X8

1X16

1X32

1X64

Fiber length

SMF-28e or customer decide

Working temperature (nm)

1260~1650

Insertion loss (dB)

typical

3.7

6.8

10.0

13.0

16.0

19.5

maximum

4.0

7.2

10.5

13.5

16.9

21.0

Uniformity loss (dB)

maximum

0.4

0.6

0.8

1.2

1.5

2.5

Return loss (dB)

minimum

50

50

50

50

50

50

Polarization dependent loss (dB)

maximum

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

minimum

55

55

55

55

55

55

Wavelength loss (dB)

maximum

0.3

0.3

0.3

0.5

0.5

0.8

Temperature loss (-40~+85℃)

maximum

0.5

0.5

0.5

0.8

0.8

1.0

Working temperature (℃)

-40~+85

Storage temperature (℃)

-40~+85



(Measured at room temperature and excludes connector loss)



2×NPLC Splitter

 Parameters

2X2

2X4

2X8

2X16

2X32

2X64

Fiber length

SMF-28e or customer decide

Working temperature (nm)

1260~1650

Insertion loss (dB)

typical

3.8

7.4

10.8

14.2

17.0

21.0

maximum

4.2

7.8

11.2

14.6

17.5

21.5

Uniformity loss (dB)

maximum

1.0

1.4

1.5

2.0

2.5

2.5

Return loss (dB)

minimum

50

50

50

50

50

50

Polarization dependent loss (dB)

maximum

0.2

0.2

0.4

0.4

0.4

0.5

Directivity (dB)

minimum

55

55

55

55

55

55

Wavelength loss (dB)

maximum

0.8

0.8

0.8

0.8

0.8

1.0

Temperature loss (-40~+85℃)

maximum

0.5

0.5

0.5

0.8

0.8

1.0

Working temperature (℃)

-40~+85

Storage temperature (℃)

-40~+85



 (Measured at room temperature and excludes connector loss)



Notes:

  • Not include connectors
  • Can make special items on customer request



Package specifications and dimensions



1×N Splitter

item

Split ratio

1×4

1×8

1×16

1×32

1×64

Steel tube

L*W*D

40×4×4

40×4×4

50×7×4

50×7×4

60×12×4

Mciro module

50×7×4

60×12×4

80×12×4

80×20×6

100×40×6

ABS module

100×80×10

100×80×10

100×80×10

140×114×18

140×114×18



2×N Splitter

item

Split ratio

2×4

2×8

2×16

2×32

2×64

Steel tube

L*W*D

50×4×4

50×4×4

60×7×4

60×7×4

60×12×4

Mciro module

60×7×4

80×12×4

80×12×4

80×20×6

100×40×6

ABS module

100×80×10

100×80×10

100×80×10

140×114×18

140×114×18



Fiber patch cord and other requirements



Parameters

Value

fiber

type

G657A1

Outer diameter

mm

0.9

Fibe length

meter

1

Fiber coating

PVC/LZSH

LSZH

Sleeve(material,color,length)

Input

0.25 Hytrel

output

0.25 Hytrel

Connectors

FC/SC/LC/ST, UPC or APC

High and low temperature cycle

10 cycles



Product package:



2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 42x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 5



WORKSHOPS

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 62x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 7

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 82x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M 9



YINGDA TECHNOLOGY LIMITED was established in 2008, is located in China's electronics manufacturing

center Shenzhen, adjacent to Hong Kong and only 40 minutes away from Shenzhen airport. The convenie

nt transportation, rapid logistics can provide more efficient service to customers around the world.



Our company produce and export mainly terminall box, splice closure,fiber optic patchcord, planar optical

waveguide PLC splitter, FBT otpical coupler, WDM, optical fiber communication, optical active / passive

devices. Our products have been sold to more than 10 foreign countries and regions, mainly in South

America, North America, Europe, and Middle east and other countries and regions. Because our

independent design, independent production, the independent quality control, self export ensures better

and faster more service. Uphold the high quality products and services, we absolutely will not reduce the

product standards to participate in the price competition. So we believe that YINGDA TECHNOLOGY

LIMITED is your best choice.



Quality assurance

Products standards:

1. The people's Republic of China communication industry standard: planar optical waveguide integrated

 optical path devices - Part 1: Based on planar lightwave circuit (PLC) optical power splitter YD/T200.1

-2009;

2. The people's Republic of China communication industry standard:: fiber optic connector YD/T 1272-

2007 ;

3. Related reliability standards: Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, Telcordia GR-326

-CORE.



Product test methods and technology:

Test equipment - Agilent equipment. For all products test before shipping, ensure product parameters in

line with industry standards and customer requirements; temperature cycle test box, drying oven, high

temperature and high humidity test box and reliability environmental test equipment, and we collaborate

with National Laboratory, such a rigorous series of reliability verification ensure products meet the

corresponding reliability requirements.



Quality management system:

Quality policy: to meet the needs of customers and continuously improve quality, cost and delivery time,

improve customer satisfaction.

Quality assurance:

From the date of receipt of goods from Party A, one year free replacement, two years in charge of

maintenance. Due to external factors such as man-made damage and equipment exceed warranty

period, maintenance charge according to product manufacturers of products and services charges.



Qualification certification

ISO9001:2008 quality management system certificate

TCL product certificate

Product reliability re-verification principle: every two years to do a complete reliability re-verification.
