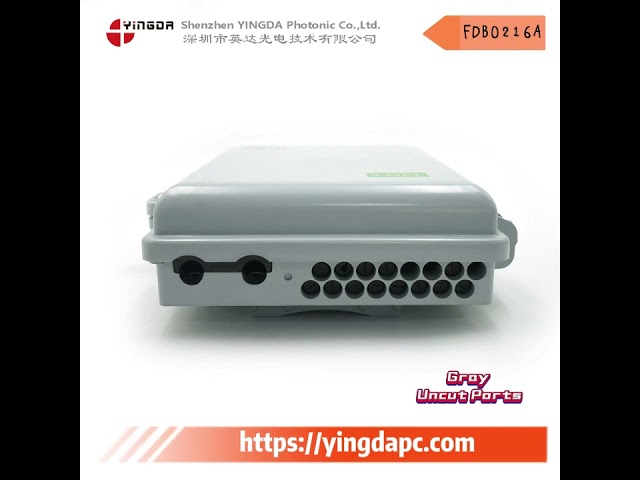

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

उत्पत्ति के प्लेस चीन
ब्रांड नाम yingda
प्रमाणन ISO,SGS
मॉडल संख्या FDB0216A
न्यूनतम आदेश मात्रा 100PCS
पैकेजिंग विवरण 1pc in a box, 10 pcs per carton box
प्रसव के समय 6days
भुगतान शर्तें Western Union, MoneyGram, T/T
आपूर्ति की क्षमता 5000pcs/month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
material ABS, PC color white or black
ftth drop cable 16 pcs cable ports 2in 16out
plc splitter 1x2, 1x4,1x8,1x16 adapter SC, LC duplex
max splicing 24 fibers application wall or pole mounting
हाई लाइट

फाइबर ऑप्टिक बंद करने

,

ऑप्टिकल वितरण बॉक्स

एक संदेश छोड़ें
उत्पाद विवरण



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter





Model: FDB0216A



Fiber Optic Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.





Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • Fiber Optic FTTH access network



Box drawing

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 0



Features

  1. Box is made of high impact plastic
  2. Can accommodate 1x8 1x16 micro PLC splitter with SC Connector
  3. Anti-UV, Ultra violet resistant and rainfall resistant.
  4. Wall and pole mounted application
  5. Max. Hold 16pcs SC or LC duplex adapters
  6. 2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
  7. Pre-install SC adapter or micro splitter, pigtails available.



Specifications:



Model Size(W*H*D) Max capacity Adapter qty PLC splitter Color
FDB0216A 260*320*115mm 16fibers 16 x SC 1x2,1x4,1x8,1x16 micro splitter White, black,grey



How to install:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 1

Packing information:



Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216A 10pcs 56*36*63cm 1.48 16.5kgs





Real photos show:

for example:

FDB0216 fully load 1x16 PLC Splitter SC/APC connectors 1 meter 900um and SC/APC adapters

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 2



FRONT SIDE INTERNAL VIEW



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 3



                    FRONT OF SPLICE TRAY INSIDE--- 16pcs Adapter panel module,

                                               This module can take off.





Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 4



               BACK VIEW OF THE SPLICE TRAY --- PLC Splitter splice and distribute



 Adapter panel can changed into LGX module, then can hold 2x 1:8 plc splitter or 1x1:16 spliter, like this:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 5



Empty box:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 6Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 7



1. 2in 16out, can use un-cut cable                    2. adapter panel+ all accessories in 1 bag



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 8Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 9

 3. cable port : 2in,16outfor FTTH drop cable   4. cable port: uncut cable or cable gland





YINGDA TECHNOLOGY LIMITED strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
