पीपी मैकेनिकल फाइबर केबल संयुक्त बॉक्स, ध्रुव माउंट स्प्लिस फाइबर ऑप्टिक संयुक्त बॉक्स
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xसामग्री | पीपी | अधिकतम क्षमता | 48 फाइबर (एकल संलयन) |
---|---|---|---|
केबल बंदरगाहों | 1 अंडाकार बंदरगाह, 4 गोल बंदरगाहों | केबल व्यास | 24 मिमी, 17.5 मिमी |
पीएलसी अलगानेवाला | अधिकतम। 2.x32 splitter - 1pc, 2x16 splitter - 2pcs | अनुसूचित जाति एडाप्टर | 36 पीसी |
एससी पिगेटेल | 32PCS | आयाम | 450 * 230mm |
ग्राहक लोगो | लेबल के साथ पैकेज बॉक्स पर | मोहरी | यांत्रिक सीलिंग |
लागू | आउटडोर एफटीटीएच विभाजन और वितरण | ||
हाई लाइट | फाइबर ऑप्टिक केबल जंक्शन बॉक्स,फाइबर ऑप्टिक केबल संयुक्त बॉक्स |

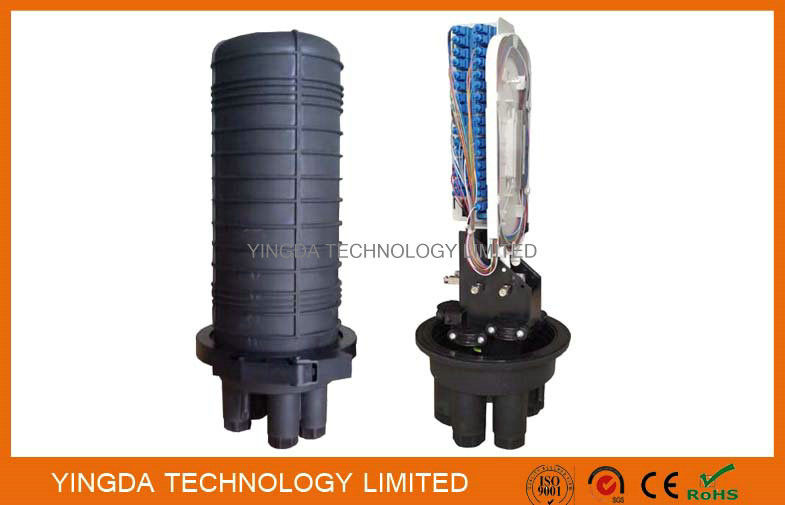

PP Mechanical Fiber Optic Enclosures For SC Adaptor Pole Mount Splice Fiber Optic Joint Box
Model: GJS-306
GJS-306 is dome splicing closure, It has function of direct connection and branch connection and
protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC
splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable
for aerial, pole, wall mounted, and buried installation.
Features:
- May be used for cut, uncut and taut sheath applications.
- May be used for all fiber optic cable.
- Sheath retention & central strength member termination system included.
- Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
- Installation and reentry with a minimum of tools
- All hardware are included
- material:pp
Product Pictures
1 | Case | 4 | Plastic clamp |
2 | Cable storage part | 5 | Base |
3 | O-shape sealing ring | 6 | Grounding part |
Main parts:
S/n | Item | Quanitty | Usage | Note |
1 | Case | 1 | Protection | |
2 | Storage tray | Upon requirement | Fix cable, protect sleeve,store and split cable | |
3 | PLC splitter (maxi. 2x32) |
2:32 (1pc) 2:16 (2pcs) |
Splitting | Optional |
4 | Sc adapter | 36 | Connection | Optional |
5 | Sc -1.5meter pigtails | 32 | Splice or direct connect drop cable | Optional |
6 | Base | 1 | Fix | |
7 | Plastic clamp | 1 | Fix the base and case | |
8 | O-shape sealing ring | 1 | The big one used to seal the base and case and small one used to seal the cable | |
9 | Plastic plug | 4 | Seal the holes without cable | |
10 | Valve | 1 | Test air pressure and sealing status | optional |
11 | Grounding part | 1 | Internal component grounding | Optional |
Optional cable sealing elements for small round ports:
Specification:
Model | GJS-306 |
Size (Height*Diameter) | 450*230mm |
Splice fiber storage capacity (single fusion) | 48 fibers fusion splice, 1x32, 1x16, 1x8 splitter |
Cable ports | 1 oval ports + 4 round ports |
Max. Diameter of cable |
1oval port: for 1 loop cble with max. Diameter 24mm; 4 round ports: each port for 1 cable with max. Diameter 17.5mm, or each port for 8 pcs of drop cable with diameter 2x3.1mm |
Material | PP |
MOQ | 50PCS |
Preparation to install:
- Check cable and accessories
- Keep dry and clean for all accessories
- Keep worksite clean, dry and dust free
- Tools for cable stripping and installation
- Don’t over bend the cable when store it
- Tools
Additional tools needed (not provided by supplier):
Item | Usage |
Making note | Mark and temporary fix |
Alcohol | clean |
Emery cloth | clean |
Stripper for transverse direction | Strip cable in transverse way |
Stripper for longitudinal direction | Strip cable in vertical way |
Stripper for bare cable | Strip bundle cable jacket |
Tape measure | Length measurement |
Cable cutting tool | Bundle cable stripping |
Electrician knife | |
Wire-cutter | Cut metal wire |
Screw wrench | Fix screw |
Scissors | |
Splice machine | Splicing |
Thermal shrinkage device | Connecting cable |
OTDR | test |
Closure laying and installation methods:
Aerial mounting & wall mounting Pole mounting
Package information
- 4pieces/ carton
- Gross weight / carton: 13.5kgs
- Carton size: 54*49*47cm
More photos
