24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xmax capacity | 24fibers | Dimension | 317*237*101mm |
---|---|---|---|
cable diameter | 2*3.0mm drop cable or indoor cable | Material | PC+ABS |
Color | white gray, black | adapter quantity | 24 pieces SC |
cable ports | 2inlet, 24outlets | special | un-cut cable go through the box |
application | pole mount, wall mount | customer request | LOGO, sample, lebel ok. |
हाई लाइट | ऑप्टिकल वितरण बॉक्स,अलगानेवाला वितरण बॉक्स |

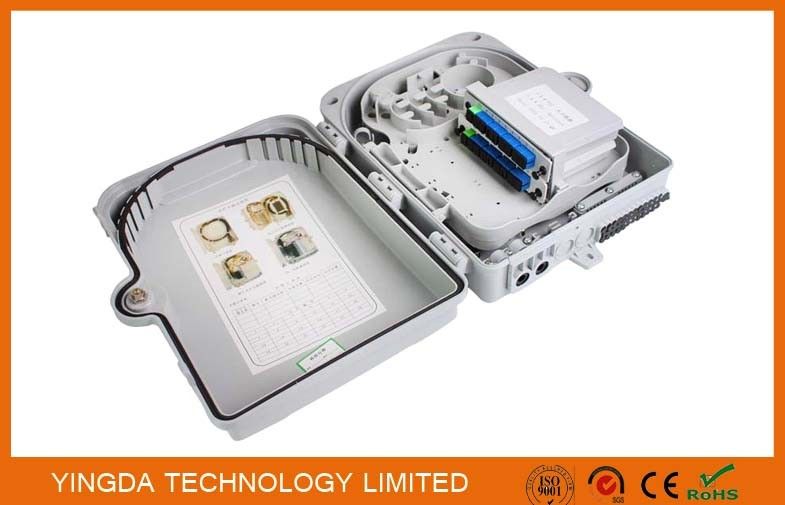

Plastic Fiber To Home Splitter Distribution Box, 24Cores Fiber Optic Splice Box SC Adaptors Flip Cover
Model: FDB0224D
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting and distribution can be done in this box,
and in meanwhile, it provides solid protection and management for the FTTx network building.
Features:
- High strength engineering plastic PC+ABS
- wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP55.
- Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one box.
- Both indoor and outdoor use
- Wall mounting and pole mounting application
- Industry standard user interface, max load24pcs LC SC adapter
- 2pcs uncut cable entry ports, 24 outports for FTTH drop cable
- Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 LGX modular splitter insert type
- Can pre-installed pigtails,patch cords or adapter, splitter.
Techanical Parameters
Environmental requirement | Main technical data | ||
Working temperature | -40°C~+75°C | Insertion loss | ≤0,2dB |
Relative humidity | ≤85%(+30°C) | UPC return loss | ≥50dB |
Atmospheric pressure | 70KPa~106KPa | APC return loss | ≥60dB |
Terminal Box Wiring Diagram
1 | Lid | 2 | Base |
3 | Flip plate | 4 | Lock and lock coat |
5 | Simple double slots | 6 | Grounding device |
7 | Module kit | 8 | Main cable expressing plate |
9 | Grounding bar | 10 | Main cable forcing expressing plate |
11 | 24cores drop cable jig | 12 | Loop ring |
13 | Drop cable expressing plate | 14 | Drop cable clip |
15 | 24cable exit dusty free blocker | 16 | Drop cable |
17 | Pigtails | 18 | Sc adapter |
19 | Main cable | 20 | Anchor |
21 | Insertion cassette/ adapter panel |
Specification
Model |
Size(A*B*C) |
Max Capacity |
FTTH drop cable | Adapter | PLC splitter | Material |
FDB0224D | 320*240*100mm | 24fibers | 24ports | SCx24pcs or LC duplex | 1x16 LGX module | ABS+PC |
Packaging information
Model | CTN qty | N.w/ctn | G.w./ctn | Ctn size |
FDB0224D | 10pcs | 15.1kgs | 17.5kgs | 60*36*63cm |
How to installation:
1.Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.
2.Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
More Real Pictures
box top and back veiw, with wal mount holes
the cable port is especiallly design for uncut cable, so as to make the cable go through the box not cutting, easy to operate and save time and cost on site.
the LGX modular can change into adapter panel on customer request, universal box.
