| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | AD-SC-01/W |
| एमओक्यू: | 1000pcs |
| कीमत: | 0.04USD-2.15USD |
| प्रसव का समय: | 5 working days |
| भुगतान की शर्तें: | T/T or western Union |

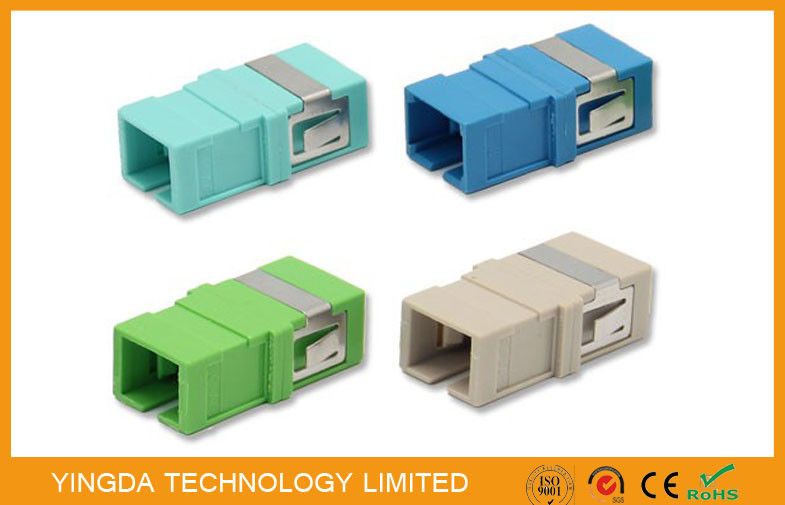

SC OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige

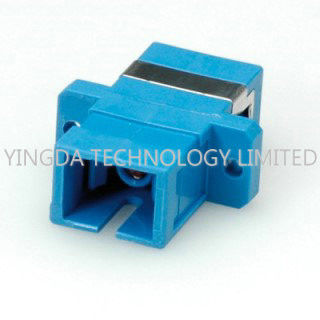

YINGDA TECHNOLOGY LIMITED offers a broad range of SC adapters in plastic or metal housing.
All adaptors can be with or without flanges due to different installation requirement, and come with
a choice of zirconia split sleeves to keep perfect contaction of two connectors.

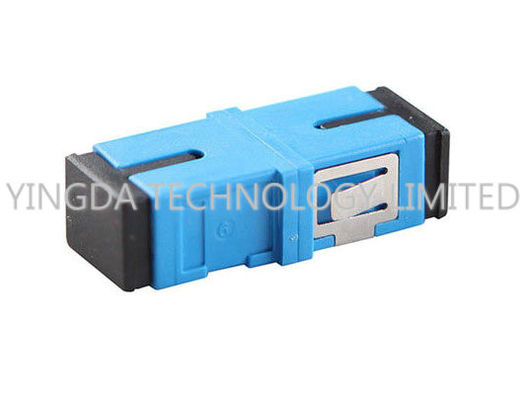

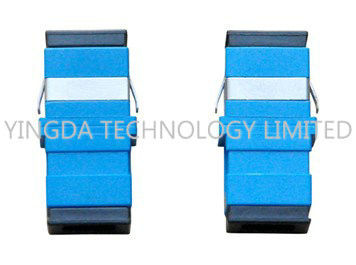

Our SC adapters without flange are suitable for installation with limited space, and fixed by the metal
shutters. All come with a choice of zirconia split sleeves (diagonal or straight split options available),
or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.: blue, beige,
aqua, green,etc.
Simplex, duplex and quad adapters are available in plastic, without flanges, and in horizontal and
vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options
available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:
blue, beige, aqua, green,etc.
SC Fiber Optic Adapter without Flange Drawing
Features
Specification
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
Order information
