| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | ATTN-SCS-01-B03 |
| एमओक्यू: | 100PCS |
| कीमत: | बातचीत योग्य |
| प्रसव का समय: | 3-5 days |
| भुगतान की शर्तें: | T/T or western Union |

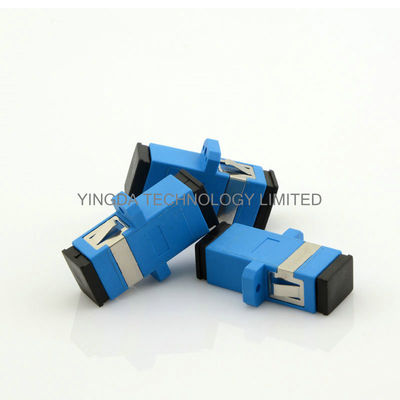

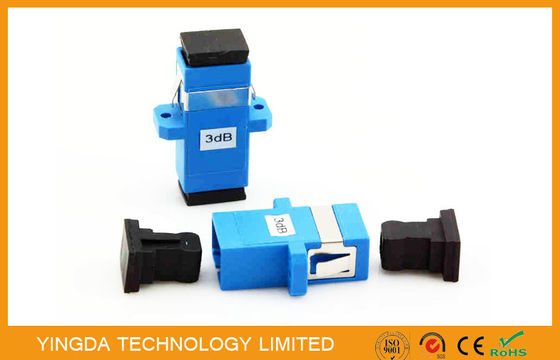

SC Fiber Optic Attenuator SC/PC SC/UPC 3dB 5dB 10dB, Fixed Attenautor SC 15dB
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power
at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,
it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,
fiber optic attenuator name is based on the connector type and the attenuation level.
SC 3dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce
the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB, and it is
also available to provid upto 30dB.
Main features
Applications
Specifications
|
Operating Wavelength |
SM:1200~1600nm, 1310nm, 1550nm, 1310/1550nm; MM: 850nm, 1300nm
|
|
Attenuation Value |
1~30dB |
|
Connector Type |
FC, SC, LC, ST, MU, E2000, MTRJ |
|
Return Loss |
PC ≥50dB; UPC ≥55dB; APC≥ 65dB |
|
Attenuation Accuracy |
1~10dB ≤ ± 0.5dB; 11~20dB ≤ ± 1.0dB; 21~30dB ≤ ± 2.0dB |
|
Maximum Optical Input Power |
200mW |
|
Operating Temperature |
-40℃ ~ + 75℃ |
|
Storage Temperature |
-40℃ ~ + 75℃ |
|
|
| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | ATTN-SCS-01-B03 |
| एमओक्यू: | 100PCS |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | 50 pc / plastic blister box or customized |
| भुगतान की शर्तें: | T/T or western Union |
SC Fiber Optic Attenuator SC/PC SC/UPC 3dB 5dB 10dB, Fixed Attenautor SC 15dB
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power
at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,
it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,
fiber optic attenuator name is based on the connector type and the attenuation level.
SC 3dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce
the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB, and it is
also available to provid upto 30dB.
Main features
Applications
Specifications
|
Operating Wavelength |
SM:1200~1600nm, 1310nm, 1550nm, 1310/1550nm; MM: 850nm, 1300nm
|
|
Attenuation Value |
1~30dB |
|
Connector Type |
FC, SC, LC, ST, MU, E2000, MTRJ |
|
Return Loss |
PC ≥50dB; UPC ≥55dB; APC≥ 65dB |
|
Attenuation Accuracy |
1~10dB ≤ ± 0.5dB; 11~20dB ≤ ± 1.0dB; 21~30dB ≤ ± 2.0dB |
|
Maximum Optical Input Power |
200mW |
|
Operating Temperature |
-40℃ ~ + 75℃ |
|
Storage Temperature |
-40℃ ~ + 75℃ |
