| एमओक्यू: | 5 PCS |
| कीमत: | बातचीत योग्य |
| स्टैंडर्ड पैकेजिंग: | 1 pc / plastoc blister box or customized |
| Delivery period: | 3-5 days |
| भुगतान विधि: | T/T or western Union |
| आपूर्ति क्षमता: | 50,000pcs per month |

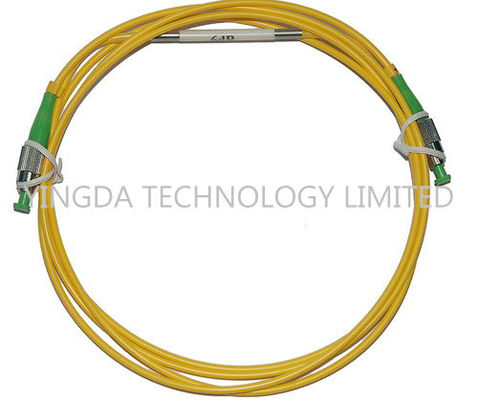

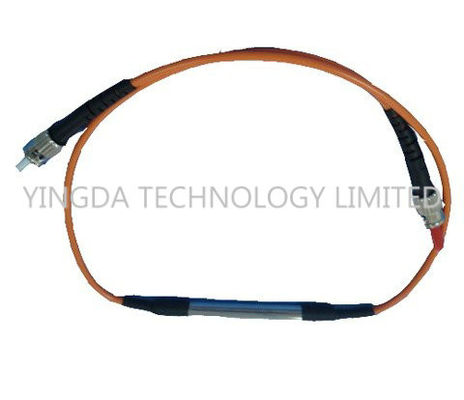

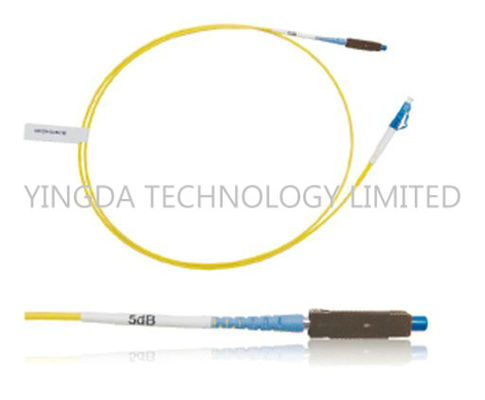

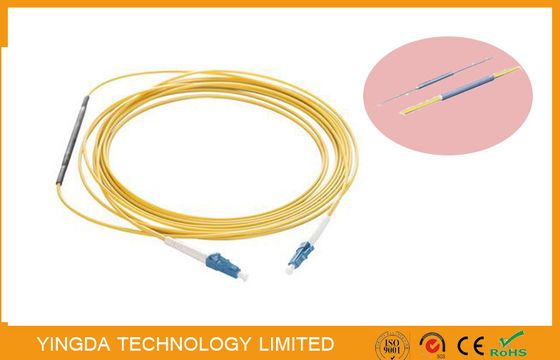

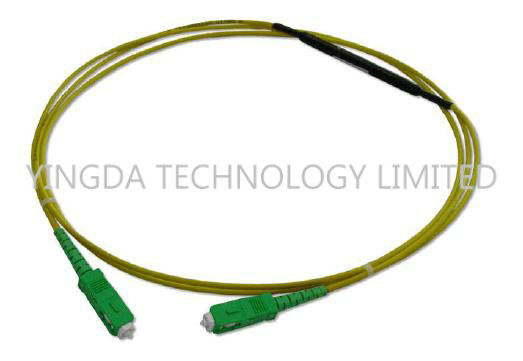

SC FC LC MU Inline Attenuator, Fixed In-line Attenuator SM 1Meter Range:1~40dB
InLine patchcord attenuators are applied when standard plug attenuators cannot be used (e.g. not
enough space in a closure) or when it is needed to attenuate an optical link by using not standard
connector type. Protection of a special attenuation part is made by rugged protection sleeve, which
ensures high durability and stability. InLine patchcord attenuators offered by Sylex are available from
cable with outer diameter of 2,8 mm for better identification we can offer InLine patchcord attenuators
in 4 different colours: black, white, green and red.
Features
Application:
Specifications
|
Fiber Type Items |
Single Mode (9/125µm) |
Multi Mode(50/125µm, 62.5/125µm) |
|
|
Attenuation Value(dB) |
1 to30 |
1 to 25 |
|
|
Operating Wavelength |
1260 to1620 |
850 /1300 |
|
|
Return Loss(dB) |
UPC |
≥55 |
－ |
|
APC |
≥65 |
－ |
|
|
Attenuation Tolerance(dB) |
±0.5 |
||
|
Maximum power capability(W) |
1 |
||
|
Operating Temperature |
-10℃～+75℃ |
||
|
Storage Temperature |
-40℃～+85℃ |
||
|
|
| एमओक्यू: | 5 PCS |
| कीमत: | बातचीत योग्य |
| स्टैंडर्ड पैकेजिंग: | 1 pc / plastoc blister box or customized |
| Delivery period: | 3-5 days |
| भुगतान विधि: | T/T or western Union |
| आपूर्ति क्षमता: | 50,000pcs per month |
SC FC LC MU Inline Attenuator, Fixed In-line Attenuator SM 1Meter Range:1~40dB
InLine patchcord attenuators are applied when standard plug attenuators cannot be used (e.g. not
enough space in a closure) or when it is needed to attenuate an optical link by using not standard
connector type. Protection of a special attenuation part is made by rugged protection sleeve, which
ensures high durability and stability. InLine patchcord attenuators offered by Sylex are available from
cable with outer diameter of 2,8 mm for better identification we can offer InLine patchcord attenuators
in 4 different colours: black, white, green and red.
Features
Application:
Specifications
|
Fiber Type Items |
Single Mode (9/125µm) |
Multi Mode(50/125µm, 62.5/125µm) |
|
|
Attenuation Value(dB) |
1 to30 |
1 to 25 |
|
|
Operating Wavelength |
1260 to1620 |
850 /1300 |
|
|
Return Loss(dB) |
UPC |
≥55 |
－ |
|
APC |
≥65 |
－ |
|
|
Attenuation Tolerance(dB) |
±0.5 |
||
|
Maximum power capability(W) |
1 |
||
|
Operating Temperature |
-10℃～+75℃ |
||
|
Storage Temperature |
-40℃～+85℃ |
||
