| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | ATTN-MVOA-LCS-02 |
| एमओक्यू: | 5 PCS |
| कीमत: | बातचीत योग्य |
| प्रसव का समय: | 3-5 days |
| भुगतान की शर्तें: | T/T or western Union |

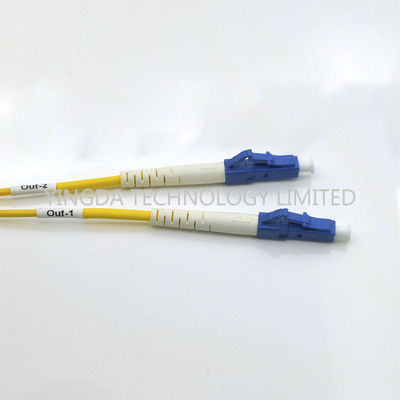

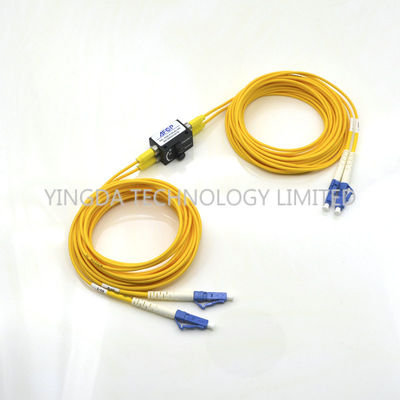

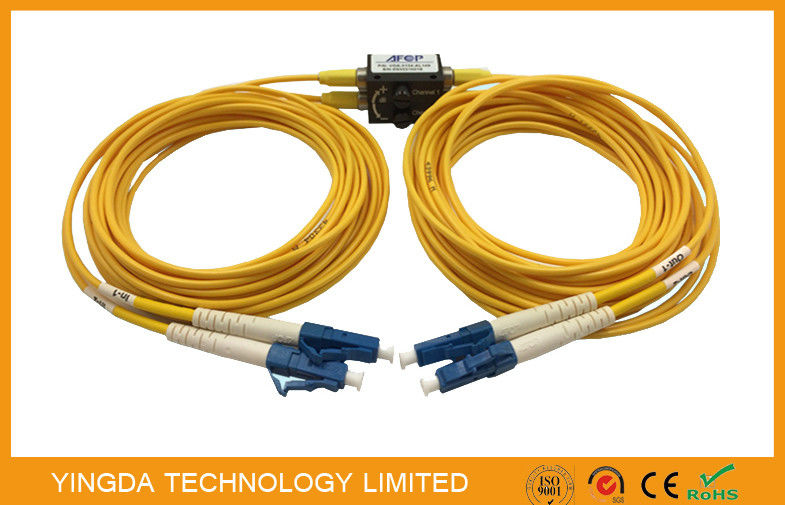

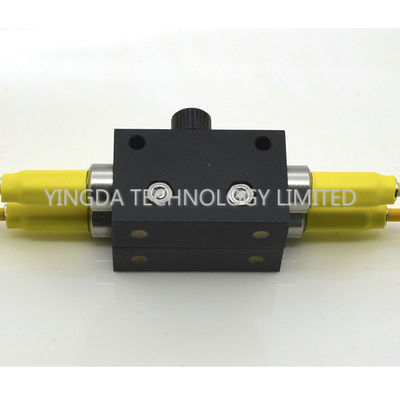

LC Duplex Mini Module Mechanical Variable Fiber Optic Attenuator MVOA Attenuator
Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined
attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its
Impedance. Attenuators are widely used in the cable television system in order to meet the
requirements of multi port for electric level such as the amplifier input, output level control,
branch attenuation control.
Product features:
Application:
Technical Performance
|
Item |
value |
|
Operating Wavelength (nm) |
1310±30&1550±30 |
|
Insertion Loss (dB) |
<0.9 (With connectors) |
|
Max. Attenuation Range (dB) |
0.9-50 |
|
Insertion Loss Temperature Sensitivity (dB/°C ) |
<0.005 |
|
PDL (dB) |
<0.15 (<15dBattenuation) <0.25 (16~50dBattenuation) |
|
Return Loss (dB) |
>45 (UPC) |
|
Maximum Power Handling (mW) |
300 |
|
Operating Temperature (°C) |
-5~+70 |
|
Storage Temperature (°C) |
-40 ~+85 |
|
Connector type |
LC / UPC |
|
Pigtail |
SMF-28e(Φ2.0mmcable) |
|
Cable Length (m) |
1.0~1.1 |
|
Dimension (mm) |
26.0 x 16.0 x 16.0 |
Note: under normal conditions, not including connectors, welding device and end face loss
Order information
|
Item |
Wavelength working/nm |
Fiber type |
Pigtail length /meter |
Connector |
|
Mechanical Variable Attenuator (MVOA) |
F=1260~1620 |
SM=single mode |
1=1.0m |
1=FC/APC |
FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm
connectors: SC FC LC ST ,etc

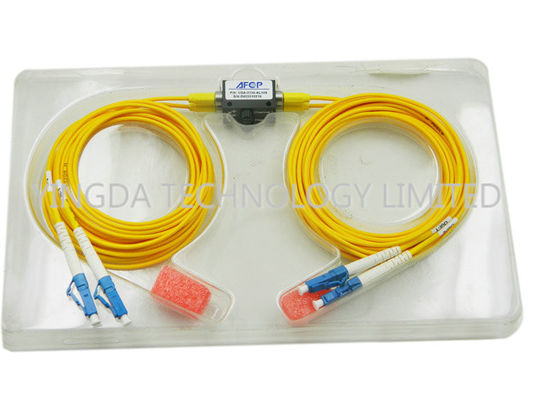

Package: blister box individual package
Polish method: UPC APC PC
Cable type: singlemode, multimode
|
|
