| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | FPC-EAEA-SX-30-01 |
| एमओक्यू: | 500 pcs |
| कीमत: | 0.36USD-30USD |
| प्रसव का समय: | 7days after payment |
| भुगतान की शर्तें: | Western Union, T/T |

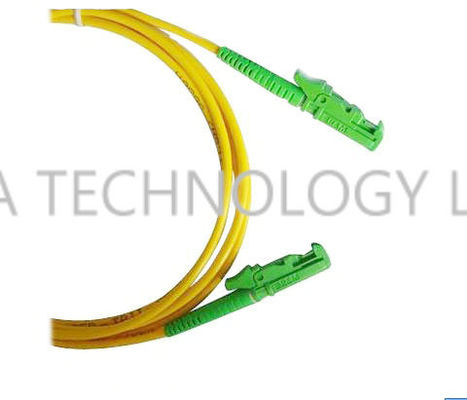

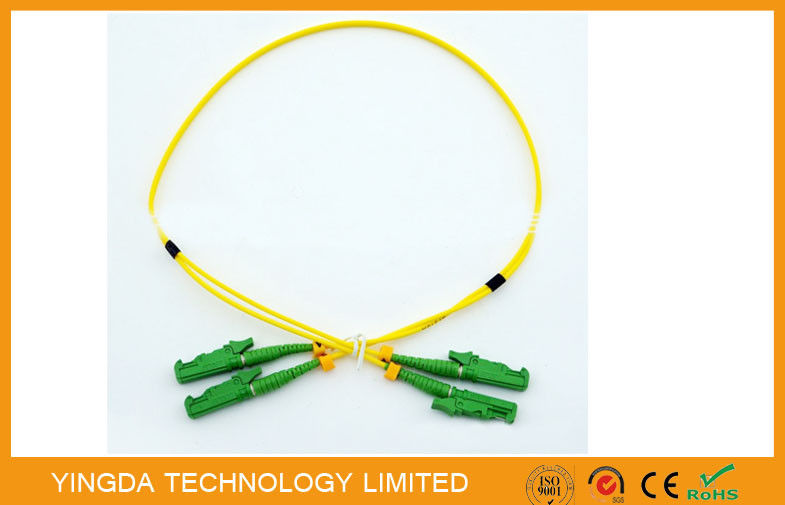

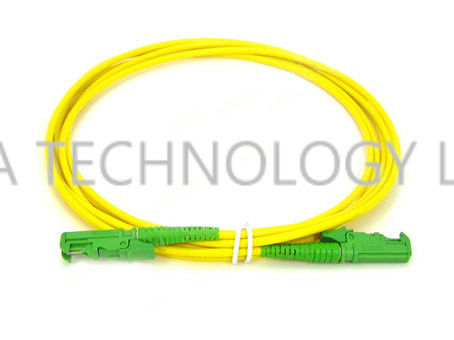

FTTH 100% Test Fiber Optic Patch Cord E2000 / APC - E2000 / APC Jumper
E2000 Fiber optic patch cord is a premium connector that offers superior performance.
The new metal protection shutters make the E2000 connectors system conforms to the
highest safety requirement in all current laser classes. The E2000 fiber optic patch cord
has several applicaiton like premise installations, data processing networks,
telecommunication networks and active device terminations.
The E2000 fiber optic patch cord has insertion loss<0.1dB. APC return loss >85dB
making this connector system ideal for high performance networks. We provide simplex
and duplex fiber optic patch cords in various boot(cable) size, also pigtails and fan-out
patch cords are available.
Feature
Application
Specification
|
Parameter |
Single mode |
Multimode |
|
Insertion loss |
Typical ≤ 0.2dB, Max. ≤ 0.3dB |
≤ 0.25dB |
|
Return loss |
≥ 50dB(PC) ; ≥ 65dB(APC) |
≥ 30dB |
|
Repeatability |
≤0.1 |
|
|
Durability |
≤0.2dB typical change,1000 matings |
|
|
Interchangeability |
≤0.2dB |
|
|
Tensile strength operating temperature |
>10kg -40 to 85C |
-40~85C |
