| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | AD-LC M/SC F-SX-M |
| एमओक्यू: | 100 PCS |
| कीमत: | बातचीत योग्य |
| प्रसव का समय: | 3 days |
| भुगतान की शर्तें: | T/T or western Union |

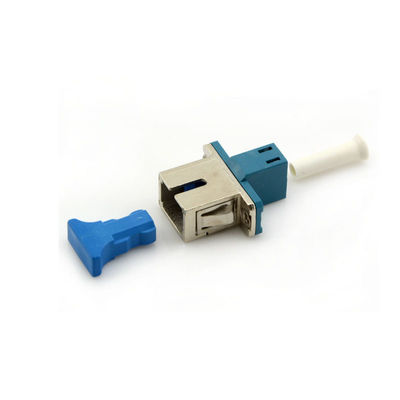

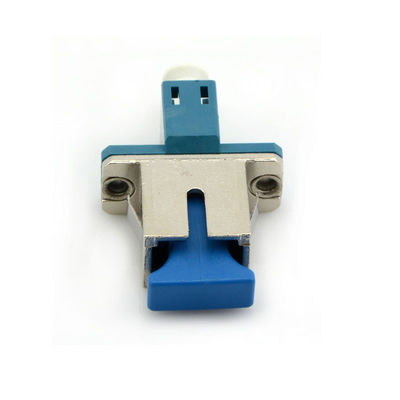

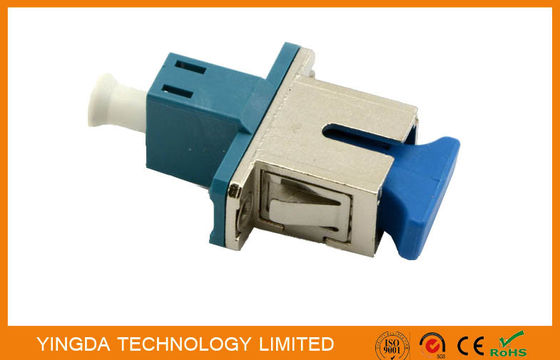

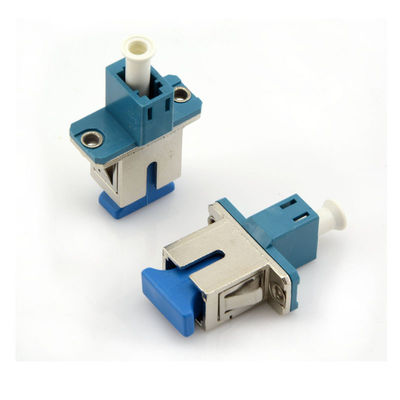

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter
Description:
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Hybrid adapter can connect different types of connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Features
Specification
|
Insertion loss |
≤0.2dB |
|
Insert-pull test |
1000 times |
|
Repeat ability |
≤0.1dB |
|
Tensile strength |
≥10kg |
|
Operating temperature |
-40°C~85°C |
|
Sleeve materials |
Ceramic or Metal |
|
Standard |
Bellcore TA-NWT-001209 |
|
Storage temperature |
-40°C~85°C |
Application
विडियो
विडियो
विडियो
|
|
