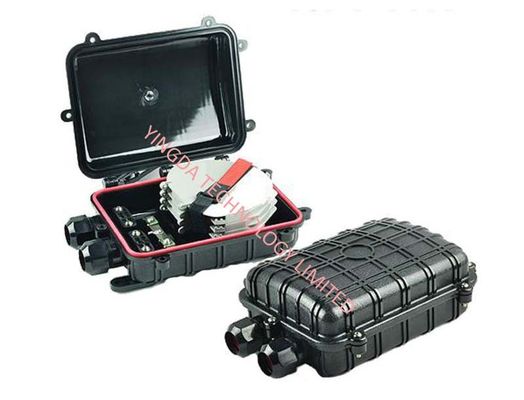

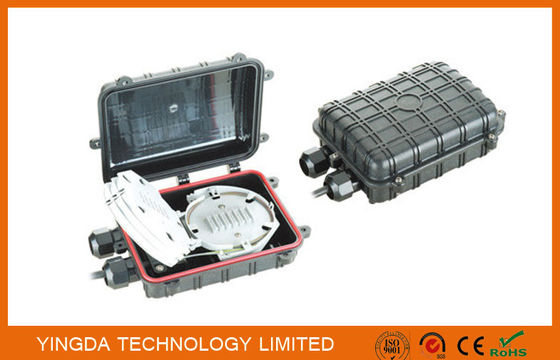

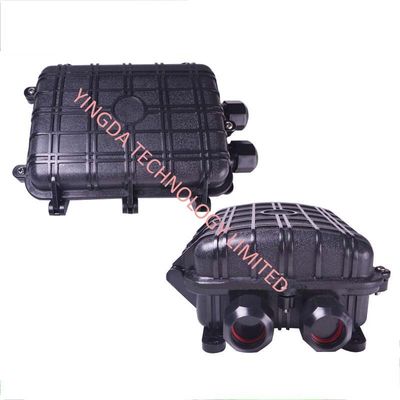

Horizontal Fiber Optic Joint Closure, Pole Mount Closure 96 Cores,
Fiber Optic Junction Box H003
Features
Specification
|
Outside dimension (LxWxH) |
280x200x90 (mm) |
|
Weight (excluding outside box) |
1200g-1500g |
|
Number of inlet/outlet ports |
max. 4 pieces |
|
Diameter of fiber cable |
Φ8—Φ14 (mm) |
|
Capacity of FOSC |
Bunchy: 6—96 (Cores) |
|
Material |
PC |
|
Working / Storage temperature |
-40 to 65℃. |
|
Splice tray capacity |
Bunchy:6,12,24(cores) |
Application: aerial and wall-mounting
Main Accessory List:
|
Name of accessories |
Usage |
|
Heat shrinkable protective sleeve |
Protecting fiber splices |
|
Nylon tie |
Fixing fiber with protective coat |
|
Seal tape |
Enlarging diameter of fiber cable which fits in with seal fitting |
|
Hanging hook |
For aerial use |
|
Fixing device |
|
|
Earthing wire |
Putting through between earthing devices |
|
Abrasive cloth |
Scratching fiber cable |
|
Labeling paper |
Labeling fiber |
|
Special wrench |
Fixing octagonal nut (plastic) |
|
Buffer tube
|
Hitched to fibers and fixed with FOST, managing buffer |
|
Desiccant |
Put into FOSC before sealing for desiccant air. |
