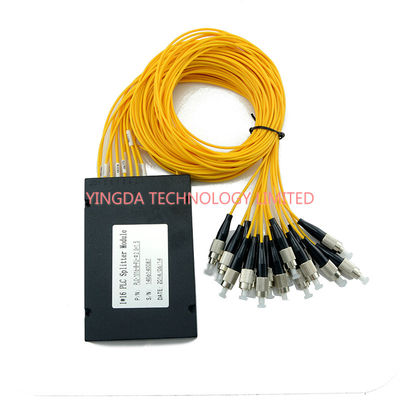

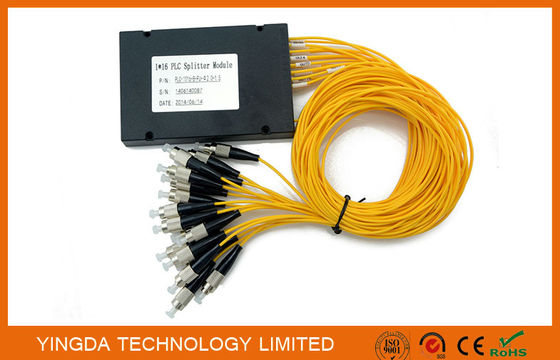

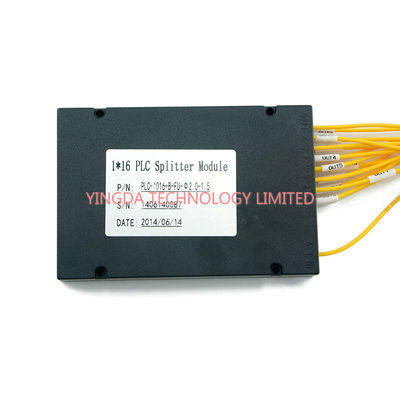

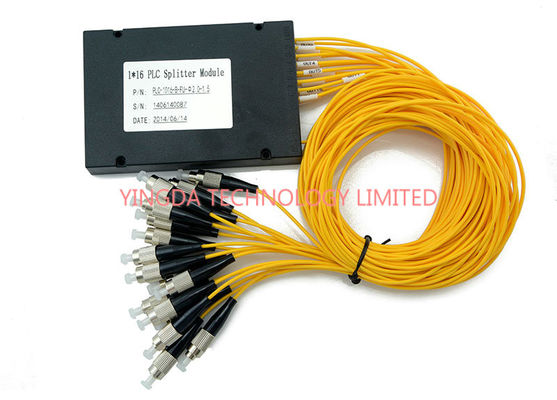

FTTH Passive Optical Splitter Fiber Optic 1X16 FC UPC SM 2.0mm Plastic Box Module
Yingda provides high precise PLC splitter for the construction optical network. Low requirements
of placing position and environment, compact insertion module type design. It is small enough to place
in indoor terminal box and ODF frame or optical fiber distribution box directly. PLC optical splitter offers
uniform power splitting with low insertion loss, low PDL and high return loss. User can customize the
optical splitting ratio for every output channel. The range of the working wavelength is from 1260nm
to 1650nm.
Features:
♦ Compact size design
♦ Low insertion loss and low PDL
♦ High reliability
♦ High channel counts
♦ Wide wavelength range
♦ Large operating temperature range
♦ Customized packaging and configuration
♦ Full Telcordia GR1209/1221 qualifications
Application:
Specifications:
1×N(N>2) (With connector) Optical parameters:
|
parameters |
1×4 |
1×8 |
1×16 |
1×32 |
||||||
|
1 |
Operation wavelength(nm) |
1260~1650 |
||||||||
|
2 |
Insertion loss(dB) |
Max |
7.4 |
10.7 |
13.7 |
16.9 |
||||
|
3 |
Return loss(dB) |
Max |
0.6 |
0.8 |
1.2 |
1.7 |
||||
|
4 |
Return loss(dB) |
Min |
55 |
55 |
55 |
55 |
||||
|
5 |
PLD(dB) |
Max |
0.2 |
0.3 |
0.3 |
0.3 |
||||
|
6 |
Directivity(dB) |
Min |
55 |
55 |
55 |
55 |
||||
|
7 |
Wavelength dependent loss(dB) |
0.4 |
0.4 |
0.5 |
0.5 |
|||||
|
8 |
Pigtail length(m) |
1.2(±0.1) or customer specified |
||||||||
|
9 |
Fiber type |
250μm bare fiber |
||||||||
|
10 |
Operation temperature(°C) |
-40~85 |
||||||||
|
11 |
Storage temperature(°C) |
-40~85 |
||||||||
|
12 |
Packaging Size(L×W×H) (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
|
||||
|
1 |
Operation wavelength(nm) |
1260~1650 |
||||||||
|
2 |
Return loss(dB) |
APC min |
55 |
|||||||
|
UPC min |
50 |
|||||||||
|
3 |
Directivity(dB) |
Min |
55 |
|||||||
|
4 |
Pigtail length(m) |
1.0(±0.1) or customer specified |
||||||||
|
5 |
Fiber type |
Customization |
||||||||
|
6 |
Operation temperature(°C) |
-20~65 |
||||||||
|
7 |
Storage temperature(°C) |
-40~85 |
||||||||
Note: All measurement were done at room temperature and specification include connectors.
2×N(N>2)PLCS(Without connector) Optical parameters:
|
parameters |
2×4 |
2×8 |
2×16 |
2×32 |
||
|
1 |
Operation wavelength(nm) |
1260~1650 |
||||
|
2 |
Insertion loss(dB) |
Max |
7.8 |
11.2 |
14.2 |
17.4 |
|
3 |
Loss uniformity(dB) |
Max |
1.2 |
1.5 |
1.8 |
2.0 |
|
4 |
Return loss(dB) |
Min |
55 |
55 |
55 |
55 |
|
5 |
PLD(dB) |
Max |
0.2 |
0.3 |
0.4 |
0.4 |
|
6 |
Directivity(dB) |
Min |
55 |
55 |
55 |
55 |
|
7 |
Wavelength dependent loss(dB) |
0.4 |
0.4 |
0.5 |
0.5 |
|
|
8 |
Pigtail length(m) |
1.2(±0.1) or customer specified |
||||
|
9 |
Fiber type |
Cusomization |
||||
|
10 |
Operation temperature(°C) |
-40~85 |
||||
|
11 |
Storage temperature(°C) |
-40~85 |
||||
|
12 |
Dimension (L×W×H) (mm) |
50×4×4 |
50×4×4 |
60×7×4 |
60×7×4 |
|
Note: All measurement were done at room temperature and specification include connectors.
