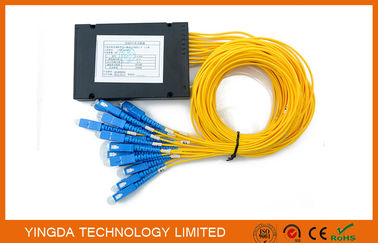

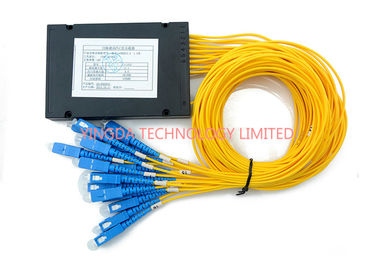

FTTH Passive Fiber Optic PLC Splitter Moule 1X16 SC SM 2.0mm Plastic Box Splitter
Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.
These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.
Applications
* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems
Features
* High uniformity
* Low insertion loss
* Compact & small size
* High reliability and stability
* Optional input & output
| PLC Specification | |||||||||
| Wavelength(nm) | 1260-1650 | ||||||||
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
|
Insertion Loss (with connector)(dB) |
≤7.4 | ≤10.7 | ≤13.7 | ≤16.9 | ≤21 | ≤7.8 | ≤11.5 | ≤14.5 | ≤17.7 |
|
Insertion Loss (W/O connector)(dB) |
≤7.7 | ≤11.2 | ≤14.2 | ≤17.5 | ≤21.5 | ≤8.3 | ≤12 | ≤15 | ≤18.2 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.7 | ≤1.7 | ≤1.7 | ≤2.2 | ≤2.7 |
| PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.4 |
| Size(Blocklesstype) (H×W×L)(mm) | 4×7×60 | 4×12×60 | 6×20×80 | 6×40×100 | 4×7×60 | 4×12×60 | 6×20×80 | ||
| Return Loss(dB) | >50 | ||||||||
| Directivity(dB) | >55 | ||||||||
| TemperatureRange(°C) | -40~+75 | ||||||||
| Storage Temperature(°C) | -40~+85 | ||||||||
2×N (N>2) (Without connector)
|
parameters |
2×4 |
2×8 |
2×16 |
2×32 |
||
|
1 |
Operation wavelength(nm) |
1260~1650 |
||||
|
2 |
Insertion loss(dB) |
Max |
7.8 |
11.2 |
14.2 |
17.4 |
|
3 |
Loss uniformity(dB) |
Max |
1.2 |
1.5 |
1.8 |
2.0 |
|
4 |
Return loss(dB) |
Min |
55 |
55 |
55 |
55 |
|
5 |
PLD(dB) |
Max |
0.2 |
0.3 |
0.4 |
0.4 |
|
6 |
Directivity(dB) |
Min |
55 |
55 |
55 |
55 |
|
7 |
Wavelength dependent loss(dB) |
0.4 |
0.4 |
0.5 |
0.5 |
|
|
8 |
Pigtail length(m) |
1.2(±0.1) or customer specified |
||||
|
9 |
Fiber type |
Cusomization |
||||
|
10 |
Operation temperature(°C) |
-40~85 |
||||
|
11 |
Storage temperature(°C) |
-40~85 |
||||
|
12 |
Dimension (L×W×H) (mm) |
50×4×4 |
50×4×4 |
60×7×4 |
60×7×4 |
|
Note: All measurement were done at room temperature and specification include connectors.
