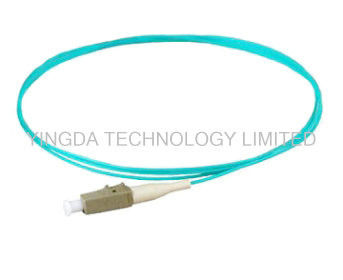

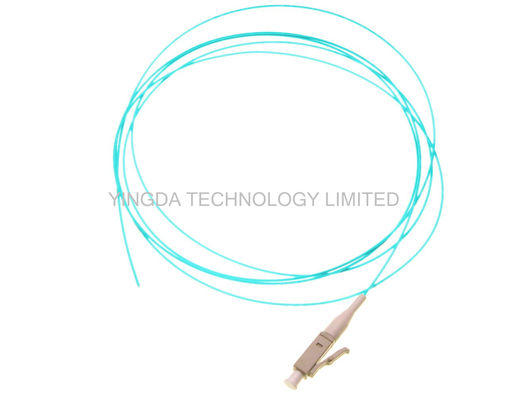

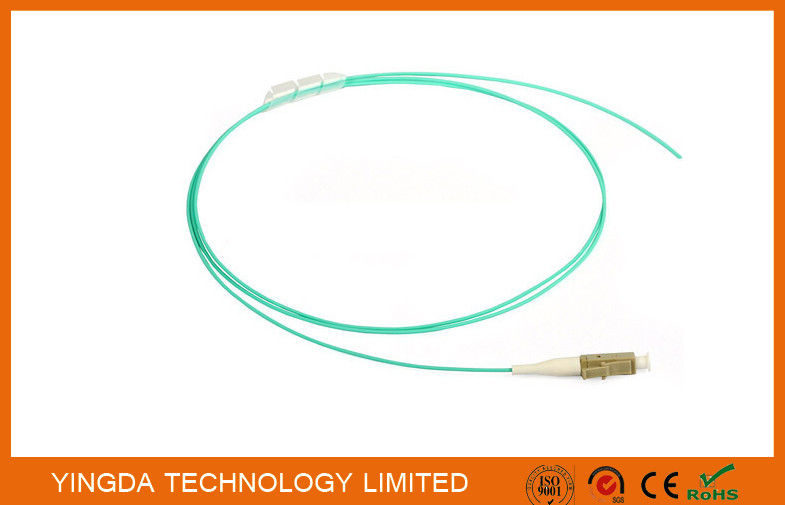

Fiber Optic Pigtail LC OM3 10Gig. Aqua 0.9mm Simplex LSZH 1.5 M 50/125 um Mulitmode Pigtail

Fiber Optic Pigtail LC OM3 10Gig. Aqua 0.9mm Simplex LSZH 1.5 M 50/125 um Mulitmode Pigtail

  • हाई लाइट

    पनरोक बेनी

    ,

    रिबन बेनी

  • Fiber type
    multimode 50/125 om3
  • fiber count
    Simplex
  • cable type
    fiber optic
  • cable diameter
    0.9 mm
  • cable length
    1.5 meter
  • connector boot
    beige
  • polish mode
    PC
  • connector
    LC
  • cable color
    aqua
  • OEM
    OK
  • ferrule
    ceramic
  • उत्पत्ति के प्लेस
    चीन
  • ब्रांड नाम
    YINGDA
  • प्रमाणन
    ISO
  • Model Number
    FPG-LC-OM3-50-1.5-Aqua
  • Minimum Order Quantity
    100 PCS
  • मूल्य
    Negotiable
  • Packaging Details
    1pc in a plastic bag, customer logo or label design ok

Fiber Optic Pigtail LC OM3 10Gig. Aqua 0.9mm Simplex LSZH 1.5 M 50/125 um Mulitmode Pigtail

Fiber Optic Pigtail LC OM3 10Gig. Aqua 0.9mm Simplex LSZH 1.5 M 50/125 um Mulitmode Pigtail





LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed

 the LC Pigtail for TelCo environment uses. Hence, LC stands for Lucent Pigtails. LC fiber Pigtails

have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.

LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic

ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.



The LC Unibody is fully compatible with the original LC family of single-mode and multimode Pigtails,

adapters and associated components, manufactured under a worldwide license from OFS Fitel. The

Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece

molded housing with internal strength member, for significantly improved 90 side-pull performance

under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results

in a latch trigger up to four times stronger than average.



YINGDA offer all kinds of pigtails, SC FC LC ST MU MTRJ, E2000, D4, DIN,etc. welcome inquiry.



Features

  • Insertion Loss low
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • Comply with YD/T 1272.4-2007 specification
  • 8 Degree Angled physical contact polishing (APC)



Specification



Item

Single mode (nomomodo)

Multimode (Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃





Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks



Ordering Information


LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

   ①  ②      ③              ④         ⑤          ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
