ब्रांड नाम: | YINGDA |
मॉडल संख्या: | MPO MTP-OM4 |
एमओक्यू: | 10PCS |
कीमत: | 0.04USD-2.15USD |
MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System

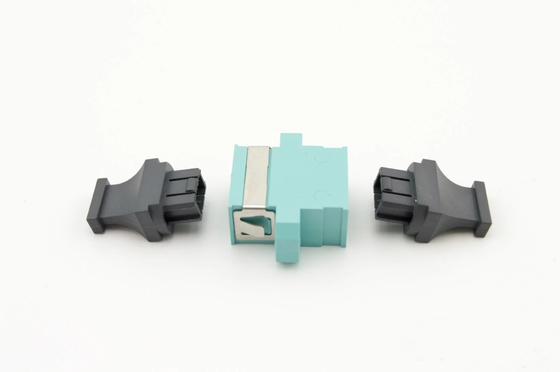

Adapter Structure
Specification
Connector |
MPO / MTP |
Color |
Black / aqua |
Test wavelength |
1310nm, 1550nm, 850nm, 1300nm |
Insertion loss |
typical<0.20dB, maximum< 0.30dB |
Repeat ability |
≤0.10dB |
Interchangeable |
≤0.20dB |
Plug performance |
Plug 500 times, <0.20dB |
Adapter material |
Plastic PC |
Working temperature |
0℃ to +70℃ |
Storage temperature |
-40℃ to +85℃ |
---------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------
Application
ब्रांड नाम: | YINGDA |
मॉडल संख्या: | MPO MTP-OM4 |
एमओक्यू: | 10PCS |
कीमत: | 0.04USD-2.15USD |
पैकेजिंग विवरण: | 1pc / box |
MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System
Adapter Structure
Specification
Connector |
MPO / MTP |
Color |
Black / aqua |
Test wavelength |
1310nm, 1550nm, 850nm, 1300nm |
Insertion loss |
typical<0.20dB, maximum< 0.30dB |
Repeat ability |
≤0.10dB |
Interchangeable |
≤0.20dB |
Plug performance |
Plug 500 times, <0.20dB |
Adapter material |
Plastic PC |
Working temperature |
0℃ to +70℃ |
Storage temperature |
-40℃ to +85℃ |
---------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------
Application
