| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | FHPC-SCU-01-F8F-A1W-01 |
| एमओक्यू: | 100PCS |
| कीमत: | बातचीत योग्य |

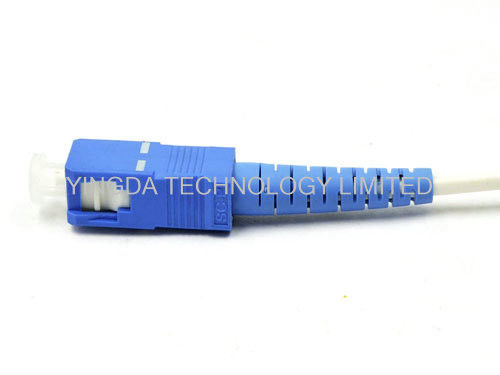

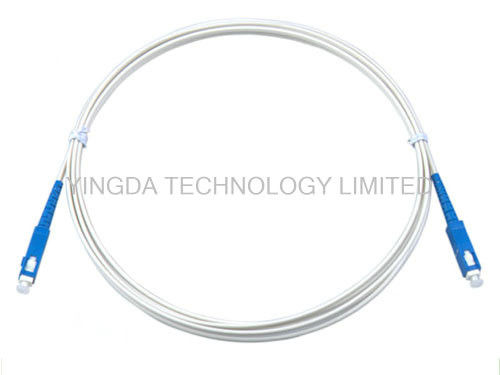

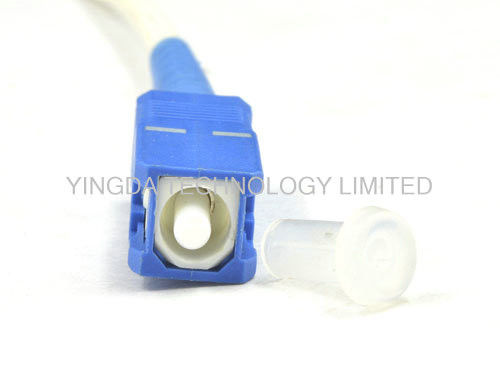

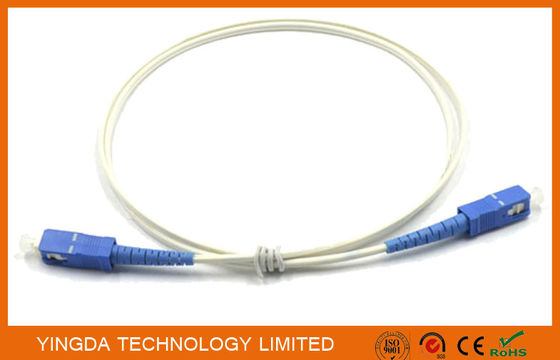

FTTH Flat SC - SC Patch Cord Single Mode Fibre Patch Leads Simplex 1m White G657A1
FTTH SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be choosed as customer request. Fiber is avaibale with G652D or G657A. Cable Jacket can be white or balck.
Features
Application
Specification
|
Mode |
SM |
MM |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile Strengh |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Delivery Length:
1-300METERS / PACK
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
More Photos
