| एमओक्यू: | 200pcs, first order accept small order |
| कीमत: | 1.0USD-18.6USD |
| स्टैंडर्ड पैकेजिंग: | 1pc/box, 20pcs/carton box |
| Delivery period: | 5-8working days |
| भुगतान विधि: | T/T, Western Union, MoneyGram, L/C |
| आपूर्ति क्षमता: | 50k per month |

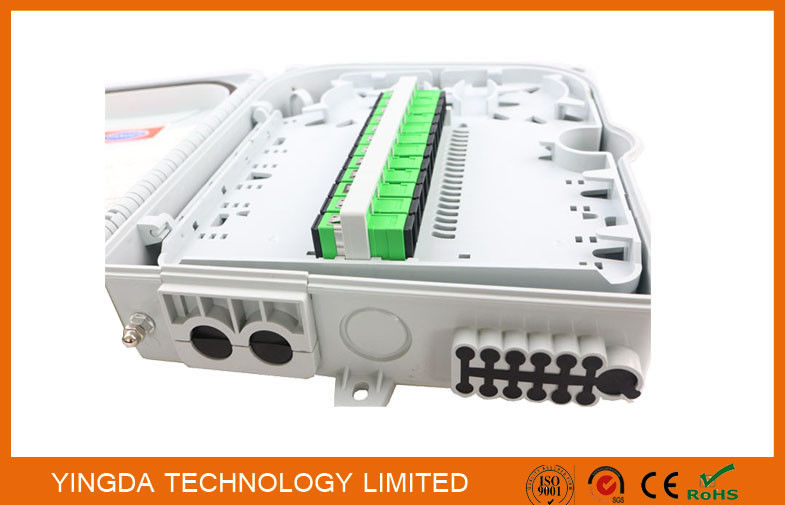

IP65 12 Cores 8 Cores FTTH Fiber Optic Termination Box ABS+PC 2In 12Out PLC Splitter Box
Model:FDB0212C
The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.
Features:
•Total enclosed structure, be in nice shape
•Material: PC+ABS, wet proof , waterproof, anti--aging
•Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
•Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
•Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Application: FTTH and FTTB
Standard Configuration
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance
Optional Configuration
Extra lock and key
More pictures
Specifications
| Environmental requirement | Main technical data | ||
| Working temperature | -40~+75℃ | Insertion loss | ≤0.2dB |
| Relative humidity | ≤85%(+30℃) | UPC Return loss | ≥50dB |
| Atmospheric pressure | 70KPa~106KPa | APC Return loss | ≥60dB |
| size 2 core | 168*102*32mm | ||
| size 4 core | 186*116*41mm | ||
| size 6 core | 196*116*41mm | ||
| size 8 core | 223*180*48mm | ||
| size 12core | 310*224*73mm | ||
| size 24 core | 317*237*101mm | ||
| size 32 core | 420*320*132mm | ||
Workshop prodution lines
