फाइबर ऑप्टिक एडाप्टर
Created with Pixso. PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter

PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter

ब्रांड नाम: YINGDA
मॉडल संख्या: AD-SCM1-02
एमओक्यू: 1000pcs
कीमत: 0.04USD-2.15USD
प्रसव का समय: 5 working days
भुगतान की शर्तें: T/T or western Union
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO,SGS
Fiber count:
duplex
connector material:
plastic
adapter color:
beige
sleeve material:
ceramic
fiber type:
multimode 50/125um,62.5/125um
polish mode:
PC
working temperature:
-40 ~ +85 °C
wavelength:
850nm
house material:
PBT / ABS
connector:
SC
उत्पाद का नाम:
एमपीओ से एमपीओ केबल, एमपीओ से एलसी केबल, एमटीपी ऑप्टिकल कनेक्टर, एमटीपी कैसेट
Packaging Details:
20 pc / box
Supply Ability:
200km/ month
प्रमुखता देना:

फाइबर ऑप्टिक युग्मक

,

bare fiber adapter

उत्पाद का वर्णन

PBT Plastic SC MM DX Fiber Optic Adapter Optical Coupler, SC Duplex Adapter





Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.



SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.





This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted

by the pin and the structure of the coupling sleeve size and FC are exactly the same,. The end face

of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,

does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in

loss, high compressive strength, high density installation.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability,low insertion loss
  4. Easy to use,plug
  5. Application: FTTH,CATV,Telecommunications,etc
  6. 100% test in factory
  7. High quality blister box package
  8. Customer label with logo ok
  9. Insertion loss<0.2dB



Specification



Wavelength

1200-1600nm

Polish method

UPC,PC,APC

Insertion loss

≤0.2dB

Max.Insertion loss

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000



Order information

  1. Connector type: SC/UPC, SC/PC, SC/APC
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex

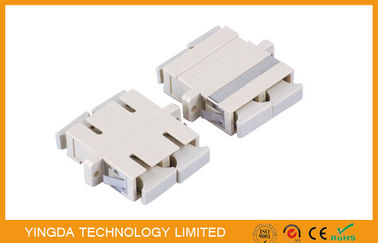

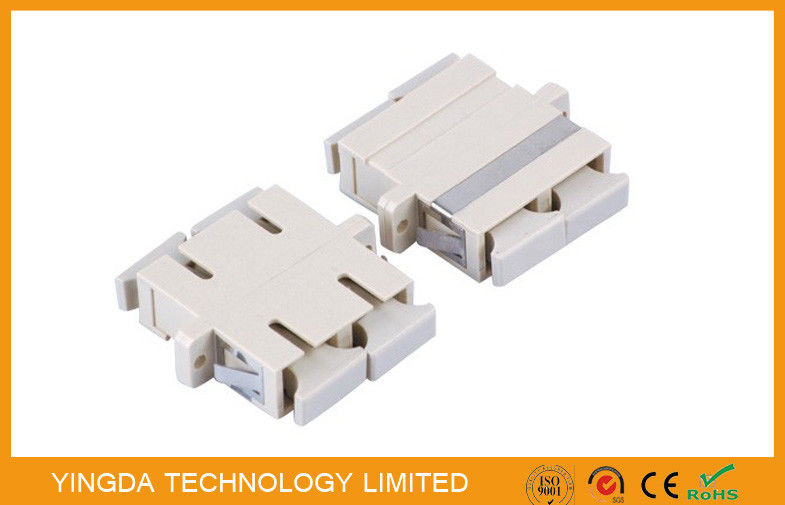

PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter 0PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter 1



PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter 2
