| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | ADB-SC-RD |
| एमओक्यू: | 100 PCS |
| कीमत: | बातचीत योग्य |
| प्रसव का समय: | 3 days |
| भुगतान की शर्तें: | T/T or western Union |

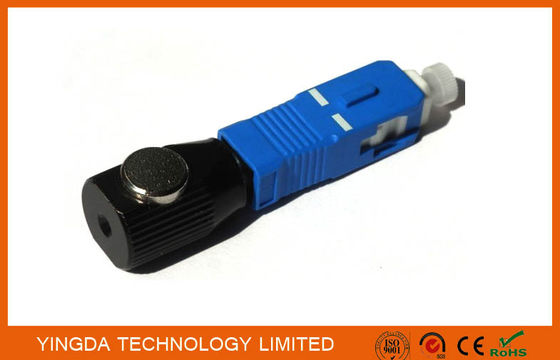

SC Bare Fiber Adapter, Bare Fiber Optic Adapter SC FC LC ST Metal Round
Description
FC SC LC ST Round Bare Fiber Adapter can link bared optic and light source ,testing equipment,
light appearance etc,and the products used for test appearance and temporary conjunction between
fiber optics extensively (repair fiber optic cable urgently). It have the bare optical fiber inside one side,
the other side is a connector that can plug into the equipment.
The optical fiber is connected through the opening sleeve inside adapter, in order to ensure the
highest performance of optical fiber jumper. In order to fixed on various panel, a variety of fixed
flange adapters design and manufactured.
Feature
Application
Specification
|
Shape |
Square / Round |
|
Connector |
FC/PC, SC/PC, ST/PC, LC/PC |
|
Applicable fiber |
SM & MM |
|
Ferrule diameter |
123-127 um |
|
Ferrule outder diameter |
2.499mm 1.249mm |
|
Cable diameter |
250um & 900um |
|
Insertion Loss |
≤0.20dB |
|
Repeat ability |
＜0.2dB |
|
Tensile strength |
100g |
|
Plug time |
>1000 times |
|
Operating Temperature |
-40 ~+85℃ |
|
Size |
Length:40mm, diameter:30mm |
