| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | LC duplex patch lead |
| एमओक्यू: | 10pcs |
| कीमत: | 0.36USD-30USD |

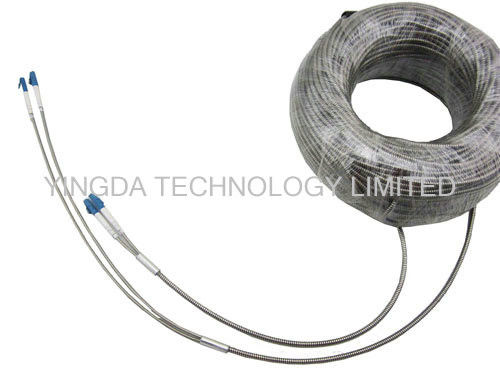

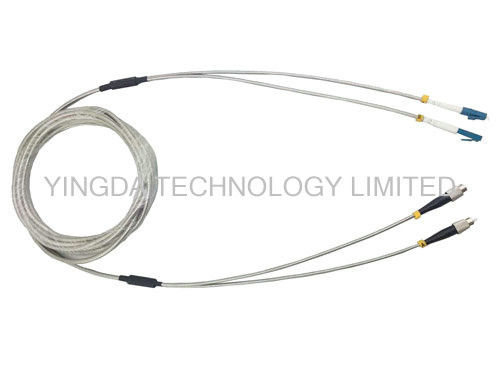

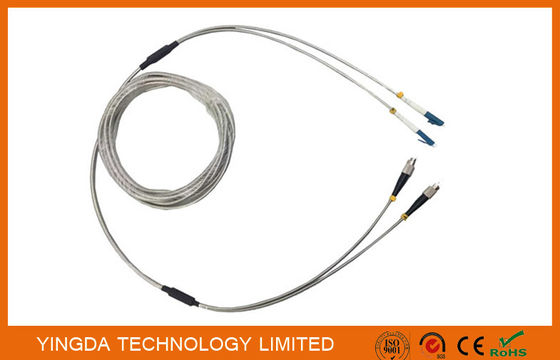

Full Armored Outdoor Optic Fiber Patch Cord DLC 2 Core Optical Cable Assembly
1. GYFJH Cable
1.1 Structure:
FTTA Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station
Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables
with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket. IH
produces FULL ARMOURED patchcord for harsh environment , especially for rodent resistance and
bird resistance.
Features
Applications
Connector specification
|
Item |
Parameter |
|
Connector |
DLC/UPC |
|
Insertion loss |
≤0.3dB |
|
Return loss |
≥35dB |
|
Fiber mode |
Multi-mode,50/125um |
|
Operating wavelength |
850nm,1310nm |
|
Test wavelength |
850nm,1310nm |
|
Repeat ability |
≤0.1dB |
|
Interchange ability |
≤0.2dB |
|
Durability |
≤0.2dB |
|
Fiber length |
1m,2m.. Any length optional |
|
Length and tolerance |
10cm |
|
Operating temperature |
-40~+85°C |
|
Storage temperature |
-40~+85°C |
