| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | FHPC-SCU-01-F8F-A2W-150 |
| एमओक्यू: | 100PCS |
| कीमत: | 0.36USD-30USD |

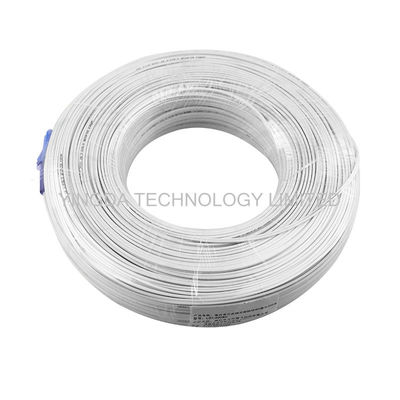

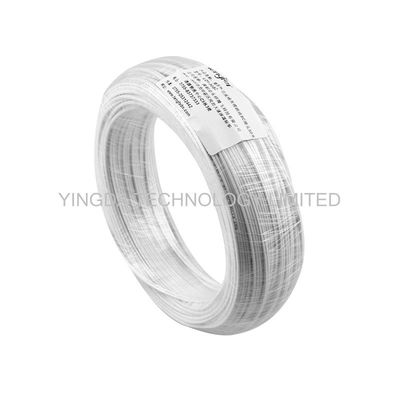

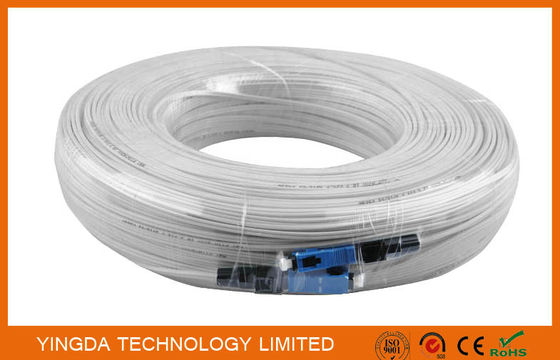

150M Fibre Patch Leads In FTTH Network Patch Cord Indoor Wiring LSZH Sheath GJXFH
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are
placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
GJXFH Cable Structure
Features
Application
FTTH Cable Specification
|
Fiber Count |
Cable Diameter |
Cable Weight |
Tensile Strength |
Crush Resistance |
Bending Radius |
|
1 |
(2.0±0.2)×(3.0±0.2) |
8 |
30/60 |
300/1000 |
15/30 |
|
2 |
(2.0±0.2)×(3.4±0.2) |
8.5 |
30/60 |
300/1000 |
15/30 |
|
3 |
(2.0±0.2)×(3.8±0.2) |
9 |
30/60 |
300/1000 |
15/30 |
|
4 |
(2.0±0.2)×(4.0±0.2) |
10 |
30/60 |
300/1000 |
15/30 |
Patch Cord Specification
|
Item |
SC FC ST LC drop cable PATCH CORD |
||
|
IL(dB) |
≤0.2 |
Max IL(dB) |
≤0.3 |
|
Working temperature(°C) |
-40~+80 |
Temperature cycle(°C) |
-40~+75 |
|
Storage temperature(°C) |
-40~+85 |
Interchangeability (dB) |
≤0.2 |
|
Plug times |
1000 times |
Repeat ability(dB) |
≤0.1 |
|
RL (dB) |
≥45 ≥50 ≥60 |
Immersion |
Temperature 43°C, PH5.5 for 7days |
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
FTTH Drop Cable can do with another connectors like FC ST LC MTRJ, ETC..
Below is FC/PC, FC/UPC, FC/APC for your reference:
