| ब्रांड नाम: | YINGDA |
| मॉडल संख्या: | FHPC-SCU-01-SFS-A1B-200 |
| एमओक्यू: | 100PCS |
| कीमत: | 0.36USD-30USD |

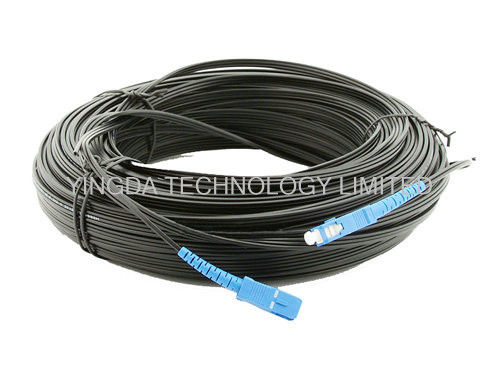

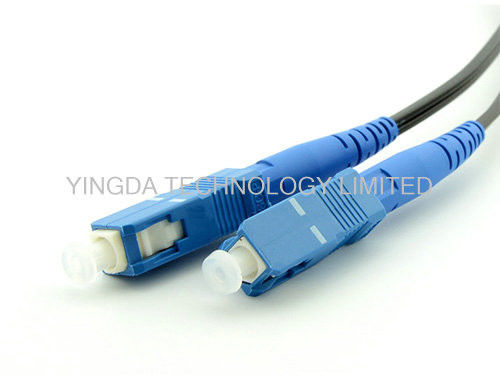

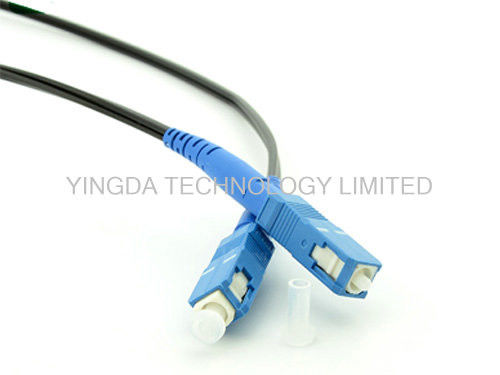

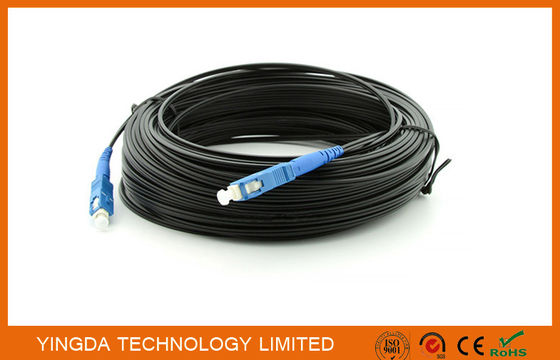

Steel FTTH Fiber Optic Patch Cord Single Mode SC Connector Simplex 200M Black
We are leading manufacturer who specialized in cable assembling and connectors, our main products
including fiber optics patch cord, pigtail, connector, adapter, coupler/PLC Splitter ect.
Features:
Application
Specification
|
Parameter |
type |
PC |
SPC |
UPC |
APC |
|
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.15dB |
|
|
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
|
|
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
Mating Durability(500 timer) |
Additional Loss≤0.1dB, Return Loss Variability<5dB |
||||
|
Temperature Stability(-40°C~75°C) |
Additional Loss≤0.2dB, Return Loss Variability<5dB |
||||
|
Operating Temperature |
-40°C~+75°C |
||||
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
|
FHPC |
Connector type
|
Fiber count |
Cable type |
Strength member |
Fiber type |
Cable color |
Cable Length |
|
FH=ftth |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Pc=patch cord |
SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... |
01=1core 02=2core 04=4core .... |
F8=Figure 8 SF=self-supporting |
F=FRP S=steel |
5D=G.652D A1=G.657A1 A2=G.657A2
|
W=white B=Black Y=yellow |
01=1m 02=2m ... 10=10m ... |
Self-supporting Bow-type drop cable (GJXFCH) structure
Mass Production:
