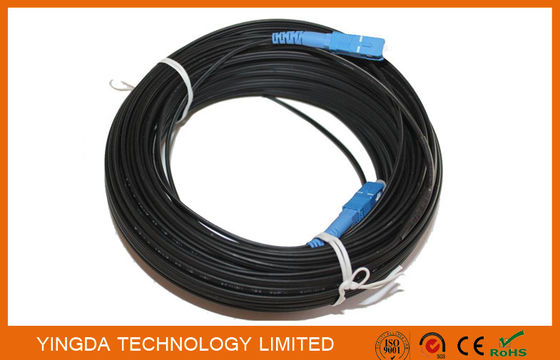

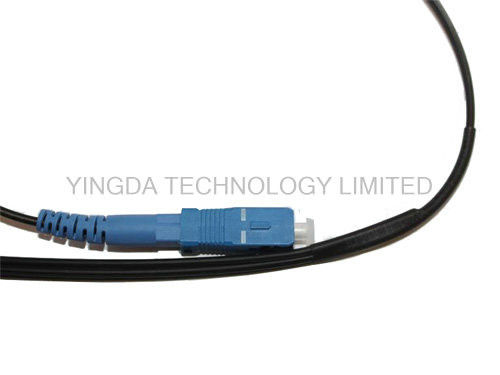

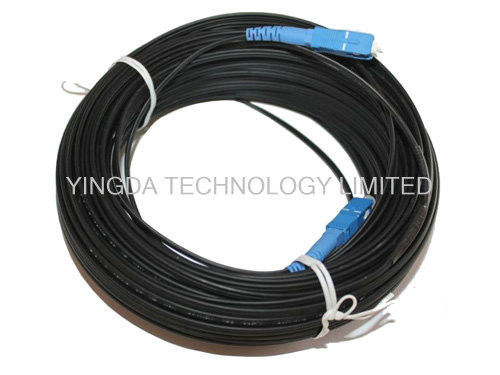

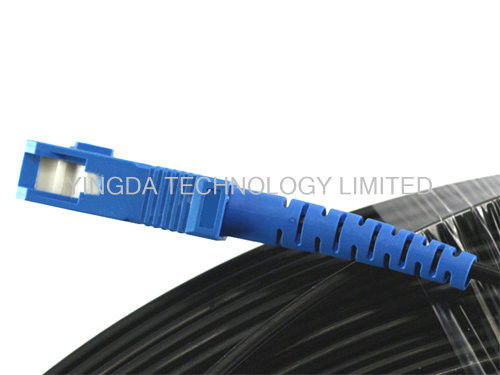

SC / UPC 200 Meters Fiber Optic Patch Cord FRP Square FTTH Drop Fiber Optic Jumper
Feature:
Applications
Indoor cable :
Outdoor cable :
Fiber Parameters
No. | Items | Unit | Specification | Specification | |
G.652D | G.657A1 | ||||
1 | Mode Field Diameter | 1310nm |
| 9.2±0.4 | 9.0±0.4 |
1550nm |
| 10.4±0.5 | 10.1±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 | ≤0.35 |
1550nm | dB/km | ≤0.3 | ≤0.21 | ||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | / | ≤0.75 |
1turn×10mm radius @1625nm | dB | / | ≤1.5 | ||
Cable Parameters
Items | Specifications | |
Fiber Count | 2 | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | white | |
| Dimension | (2.0±0.1)mm×(5.1±0.1)mm |
Jacket | Material | LSZH |
| Color | Black |
Strength Member | FRP& (Steel Wire) | |
Patch cord parameters
Item | Singlemode | Multimode | |
Insertion loss | <=0.3dB | <=0.3dB | |
Return loss | >=50dB | >=40dB | |
Operating temperature | -40 ~+85 °C | ||
Ceramic ferrule spec | 125.5um concentricity | 127um concentricity | |
| 9/125 μm | 50/125 μm, 62.5/125μm | |
Order information
FHPC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
FHPC | Connector | Fiber | Cable | Strength | Fiber type | Cable | Cable |
FH=ftth | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Pc=patch | SCU=SC/UPC | 01=1core | F8=Figure 8 | F=FRP | 5D=G.652D | W=white | 01=1m |
Mass Production:
