Aerial Splice Closure Fiber Optic Splicing For PLC Splitter 1x8 SC Adapters FTTH Drop Cable Straight Through
GJS-2011 is widely for splitting and wiring fiber optical splice closure not only have the butt-joint
and branching function, but also have the function of optical cable splitting and wiring, suitable
for the installation of main optical cables and drop cables with different diameters.
- Straight-through for uncutting and branching for cutting the fiber.
- There are 2*3 drop cable elements to be chosen Max. 16 pcs drop cable input/output.
- It can be installed Max. one 1:8 blockless PLC splitter.
- Lay adapters suit for FTTH and easy to operate.
- The closure is spacious enough for winding and storing fibers.
- Fiber Optic Splice Trays (FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°.
- The curved diameter meets with international standard.
- Easy and fast to increase and reduce FOSTs.
- Easy to re-enter, it never requires re-entry tool it.
- Advanced internal structure design.
||GJS-2011 bunchy fibers
|Max adapter capacity
||8 pcs SC
|PLC splitter micro module
||6 ports for distribution cable, 8 pcs for drop cable
6ports:2 round ports:13mm
2 round ports:16mm
2 round ports:20mm
8pcs: drop cable 2*3.1mm
- Suitable for bunchy fibers 8 cores
- Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting
- It’s especially applicable to FTTH optical fiber distribution

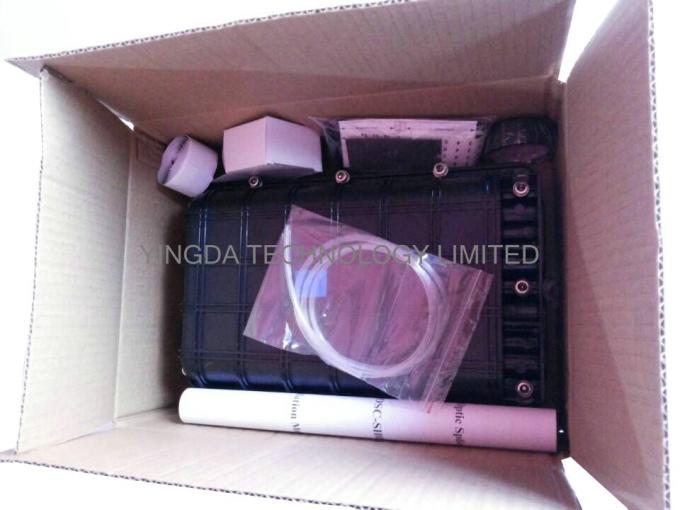

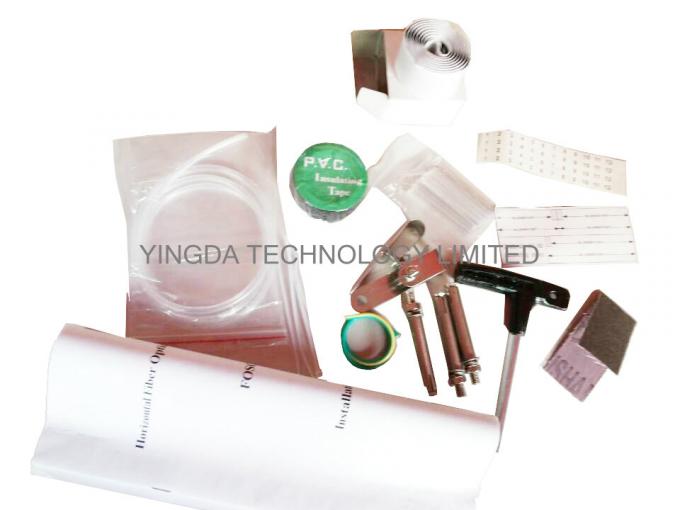

Package: 1 piece / box, with all mounting accessories
- english user manual x1 pc
- sand paper x1pc
- speical wrench x1pc
- wall mounting kits x1 sets
- buffer tube x1pc
- labeling mark 1xsets
- earthing wire x1pc
- insulation tape x1roll
- sealing tape x1roll
- protection sleee x 1bag
- desiccant x 2bags

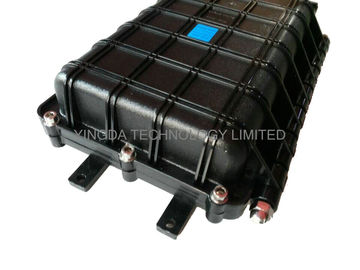

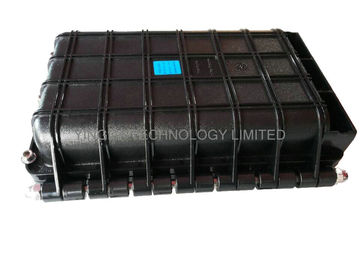

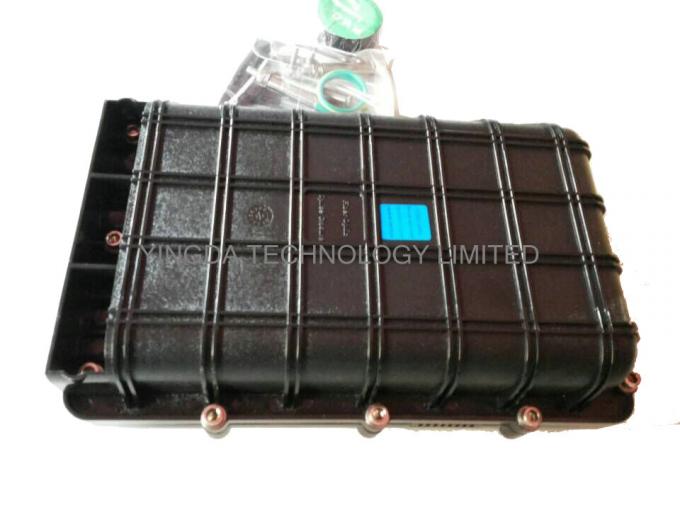

Box side view, high strength engineer plastic PC material,with stainless steel screws x9 pieces to close and open the box, with special wrench equipped tool.

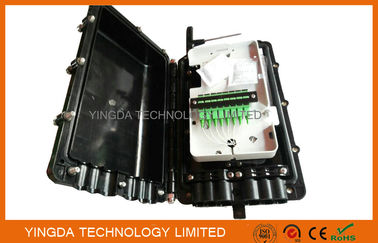

- inline fiber optic splicing splitter box with 1x8 PLC splitte SC/APC connectors

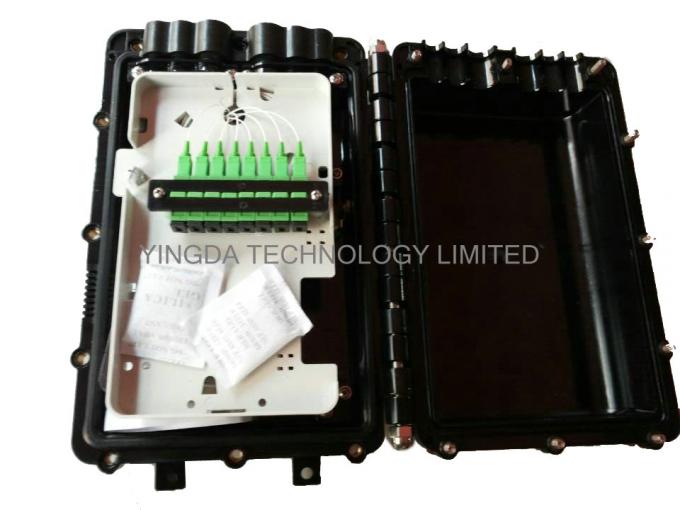

- 2bags desiccant to make dry and clean environment inside of box
- with rubber sealing around the box so as to make is suitable for outdoor harsh enviornment.
- box is equipped with wall mounting kits if customer not said on default.
- 1x english user manual is inside of the temrinal box, udner the splice tray for splitting.
- The tray is fixed on the box with hand-use plastic screws, no need to use speical tool to take off the tray.
- Easy to operate and install adapters or plc splitter on the tray after you take it off , and when finished it, fix it on the closure.

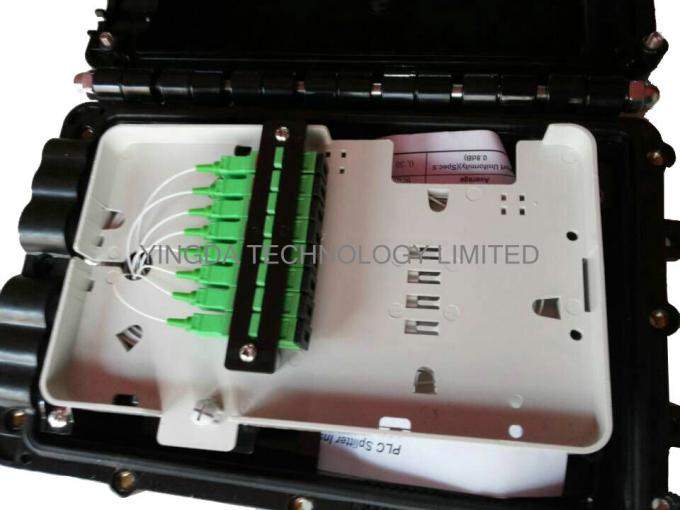

- The splice tray speciallly deisgned can be taken off by hand.upward is the adapter panel for distribution, the backward is for cable splitting with micro optical plc splitter and reduandant fibers storage.
- There is speical place for fix the PLC splitter tube, and clip it.
- And you can stick the splitter input cable and sc connectors on this side to keep it safe, when installation, please take carefully so as not to make the fiber broken.

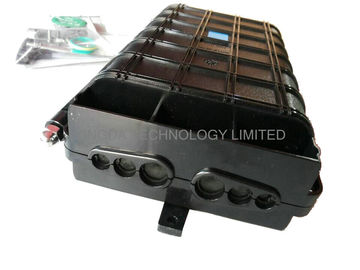

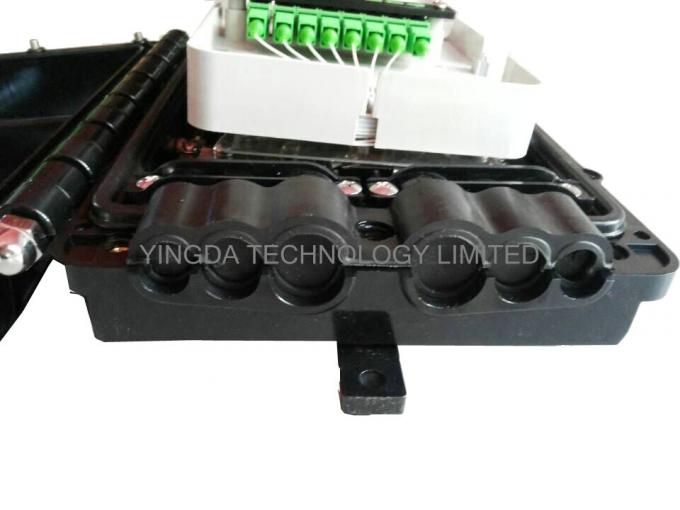

The cable inports:6ports, optical fiber cable diameter is:
The cable outports: 8 ports, speically design for 8 pieces FTTH drop cable 2x3mm size.
