1/16 Fiber Optic PLC Splitter Ribbon Broadband FTTH Splitter Coupler 1 x 16

बुनियादी जानकारी
Place of Origin: SHENZHEN,CHINA
ब्रांड नाम: YINGDA
प्रमाणन: ISO
Model Number: 1x64 PLC Splitter
Minimum Order Quantity: 100 pcs
मूल्य: negotiable
Packaging Details: 2pc/ box, 20pcs/carton box
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
विस्तार जानकारी
split ratio: 1X64 micro plc splitter connector: SC/APC simiplex
fiber type: single mode G657A1 insertion loss: 20.4dB
Uniformity (Max.): 2.0dB wavelength: 1260 - 1650 nm
PDL(Max.): 0.4dB Standard: Telcordia GR-1221 and GR-1209
tube dimension: 100*40*6mm cable diameter: 0.9mm
cable color: input white, output: colorful

उत्पाद विवरण

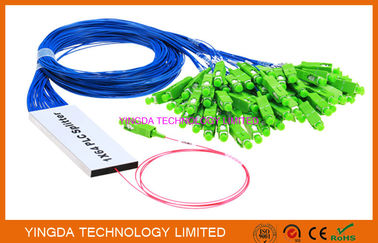

Fiber Optic Splitter PLC 1x64 Singlemode Steel Tube LSZH G657A,1:64 PLC Splitter SC Couplers
Features

  • Corning fiber
  • Bidirectional, Compact size
  • Low insertion loss, Low PDL and High reliability
  • High return loss and Good repeatability
  • Wide wavelength range
  • Excellent channel-to-channel uniformity
  • Telcordia GR-1221-Core Compliant
  • 1x2 through 1x64 Configurations


Applications

  • LAN, WAN and Metro Networks
  • FTTH project & FTTX Deployments
  • CATV System
  • GPON, EPON
  • Fiber Optic Test Equipment
  • Data-base Transmit Broadband Net


1/16 Fiber Optic PLC Splitter Ribbon Broadband FTTH Splitter Coupler 1 x 161/16 Fiber Optic PLC Splitter Ribbon Broadband FTTH Splitter Coupler 1 x 16
Technical Specs for PLC Splitter with Fiber Optic Connectors
1xN splitter

Item1x21x41x81x161x321x641x128
Fiber TypeG.657A
Working Wavelength1260nm~1650nm
Standard Insertion Loss(dB)≤4.2≤7.6≤10.7≤14.0≤17.2≤20.8≤24.0
P-Grade Insertion Loss(dB)≤4.0≤7.4≤10.5≤13.8≤17.0≤20.4≤23.7
Uniformity(dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
PDL(dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
Wavelength Dependent Loss(dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
Return Loss(dB)≥50
Directivity(dB)≥55
Operating Temp.Gange-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.


2xN splitter

Item2x22x42x82x162x322x642x128
Fiber TypeG.657A
Working Wavelength1260nm~1650nm
Standard Insertion Loss(dB)≤4.4≤8.0≤11.0≤14.6≤17.8≤21.0≤24.4
P-Grade Insertion Loss(dB)≤4.2≤7.7≤10.8≤14.1≤17.4≤20.7≤24.0
Uniformity(dB)≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤3.0
PDL(dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
Wavelength Dependent Loss(dB)≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤3.0
Return Loss(dB)≥50
Directivity(dB)≥55
Operating Temp.Gange-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.


Encapsulation size

Item1×21×41×81×161×321×64
Length*Width*Height(mm)60×7×460×7×460×7×460×12×480×20×6100×40×6
Item2×22×42×82×162×322×64
Length*Width*Height(mm)60×7×460×7×460×7×480×12×4100×20×6100×40×6


Order information



Port
FiberInput PigtailInput ConnectorInput Pigtail
Length
Output PigtailOutput
Connector
OutputPigtail
Length
PLC102=1x2
104=1x4
108=1x8
116=1x16
132=1x32
164=1x64
128=1x128
204=2x4
208=2x8
216=2x16
232=2x32
264=2x64
1=G657A
2=G652D
SP=Special
1=250um
Bare Fiber
2=900um
tight uffer
3=900um
loose tube
4=2.0mm
cable
5=3.0mm
cable
SP=Special
NE=None
SU=SC/UPC
SA=SC/APC
LU=LC/UPC
LA=LC/APC
FU=FC/UPC
FA=FC/APC
SP=Special
0=0.5m
1=1m
2=1.5m
3=2m
4=3m
SP=Special
1=250um
Bare Fiber
2=900um
tight uffer
3=900um
loose tube
4=2.0mm
cable
5=3.0mm
cable
SP=Special
NE=None
SU=SC/UPC
SA=SC/APC
LU=LC/UPC
LA=LC/APC
FU=FC/UPC
FA=FC/APC
SP=Special
0=0.5m
1=1m
2=1.5m
3=2m
4=3m
SP=Speci
