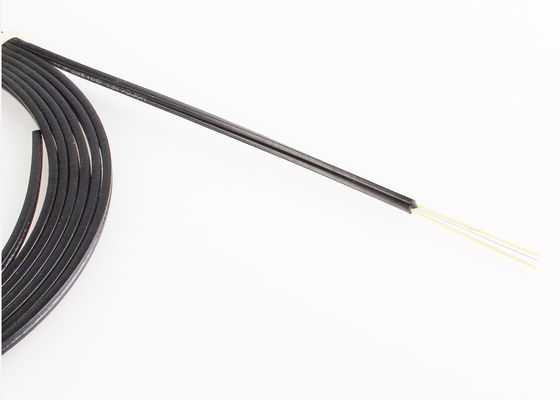

FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या GJXFH-02B7
न्यूनतम आदेश मात्रा 10 km
मूल्य Negotiable
पैकेजिंग विवरण 2km / reel or cusotmized
प्रसव के समय 5 working days
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 500km / month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
fiber count 2 Cores strength member FRP non-metallic

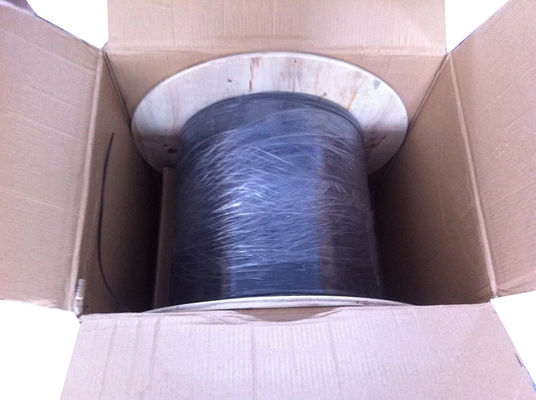

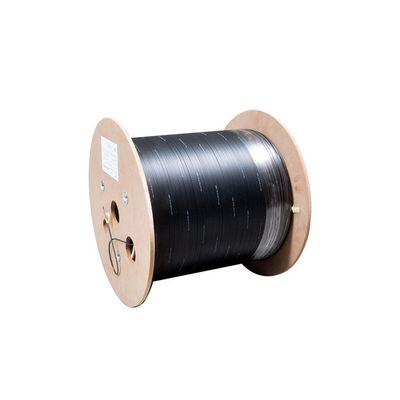

pack 2KM / drum(reel) or 3km/ drum, 4km/drum Name butterfly indoor drop cable
cable color black cable shape figure 8
Fiber type G657A1 G657A2 G652D Package wooden drum and carton box
outer jacket LSZH
हाई लाइट

एफटीटीएच बूंद केबल

,

fiber optic drop cable

एक संदेश छोड़ें
उत्पाद विवरण

Bow-type FRP Glass Fiber Optic FTTH Drop Cable G657A SM 2Fibers GJXFH Black


Description

Figure 8 fiber optic drop cable is a cable designed specifically for FTTH. It adopts double reinforcement
figure 8 structure, the optical fiber unit is positioned in the centre ,two parallel fiber reinforced plastics
FRP are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath. This
drop cable can directly drop into the building household from the fiber optic splice closure. Particularly
it suitable to use together with fast connector(field installation connector), mechanical splice; also it
can be separate the suspended fiber core and then splice with others.

Features

  1. Special high bending radius fiber, provides wider bandwidth, enhance network transmission
  2. characteristics, easily reached 100M /S, realize broadband, television and telephone triple
  3. play.
  4. Two parallel reinforcement members ensure fiber optic cable with good compression perform
  5. ance, protect the fiber.
  6. Simple structure, light weight, strong practicability.
  7. The unique groove design, easy separation, convenient connection, simplify the installation
  8. and maintenance.
  9. Low smoke halogen-free flame retardant sheath, environmental protection


Application:
◆ Used as access building cable
◆ Used in indoor cabling especially used for FTTH

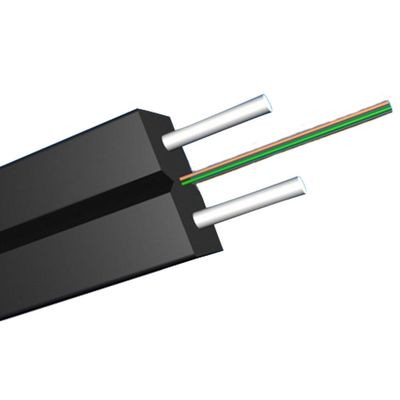

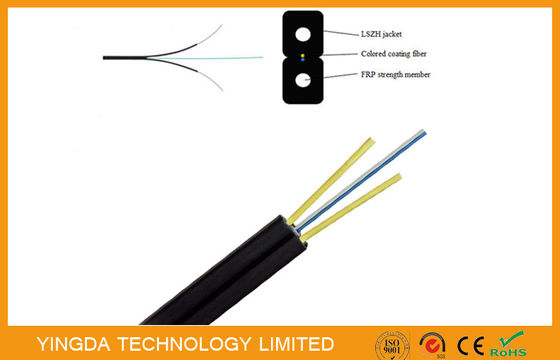

Cable structure:
FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black 0
Technical parameters


Cable code

Fiber
 count

Cable
size
(mm)

Cable
weight
(kg/km)

Tensile(N)

Crush
(N/100mm)

Crush
 resistance

Temperature
(°C)

Long
term

Short
 term

Long
term

Short
 term

Dynamic

Static

GJXFH-01

1

1.6*2.0

5

40

80

500

1000

30D

15D

-20~+60

GJXFH-01

1

2.0*3.0

8

40

80

500

1000

30D

15D

GJXFH-02

2

2.0*3.0

8.5

40

0

500

1000

30D

15D

GJXFH-04

4

2.0*3.0

9

40

80

500

1000

30D

15D

GJXFH-06

6

3.0*4.0

14

45

85

500

1000

30D

15D

GJXFH-08

8

3.0*4.0

16

50

90

500

1000

30D

15D

GJXFH-12

12

3.0*4.0

19

55

95

500

1000

30D

15D



Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket material

PE

LSZH

Features:

Special low beng sensitivity fiber provodes high bandwidth

Two parallel FRP strength member ensures good performance
 of crush resistance to protect the fiber

Simplex structure, light weight,high practicability

Low smoke zero halogen and flame retardant sheath



FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black 1FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black 2FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black 3FRP Glass Fiber Optic FTTH Drop Wire Cable G657A SM 2 Fibers GJXFH Black 4
