| एमओक्यू: | 500PCS |
| कीमत: | 0.19USD-0.72USD |
| स्टैंडर्ड पैकेजिंग: | 1pc /plastic bag |
| वितरण अवधि: | 5 working days after received your payment |
| भुगतान विधि: | T/T or western Union |
| आपूर्ति क्षमता: | 500,000pcs per month |

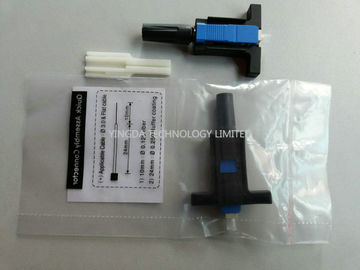

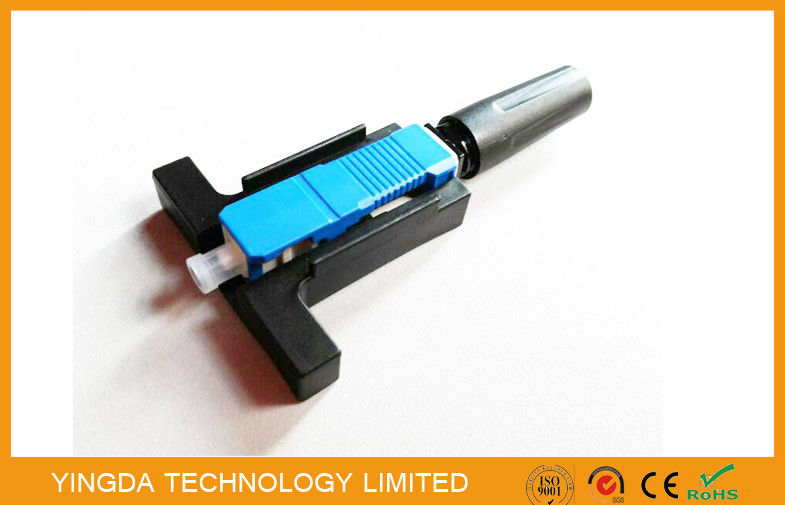

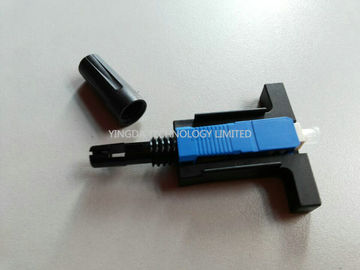

Fiber Optic Field Terminated Connector SC/PC, SC Field Installable Connector
Sell point:
1.SC cover type, cable cut length: 24mm / 10mm
2. Apply to 2mm* 3mm drop fiber cable
3.Ceramic V-groove structure, good sealing performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥45dB
6. No need epoxy or polished, field-installable, factory embedded fiber
Description
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.
It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical
specification meets the optical fiber connector standards .
The structure of crimping position is a unique design, and need not glue curing, polishing neither any
consumables. Adopting fiber pre-installed structure, and convenient for field installation.
Features
Application
Specification
|
Type |
Parameters |
|
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≤ -40dB |
|
Bare fiber strength |
>5N |
|
Clad strength |
>10N |
|
Tension |
>50N |
|
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
|
Operating Temperature |
5 ºC to +70 ºC |
Order information
विडियो
विडियो
|
|
| एमओक्यू: | 500PCS |
| कीमत: | 0.19USD-0.72USD |
| स्टैंडर्ड पैकेजिंग: | 1pc /plastic bag |
| वितरण अवधि: | 5 working days after received your payment |
| भुगतान विधि: | T/T or western Union |
| आपूर्ति क्षमता: | 500,000pcs per month |
Fiber Optic Field Terminated Connector SC/PC, SC Field Installable Connector
Sell point:
1.SC cover type, cable cut length: 24mm / 10mm
2. Apply to 2mm* 3mm drop fiber cable
3.Ceramic V-groove structure, good sealing performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥45dB
6. No need epoxy or polished, field-installable, factory embedded fiber
Description
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.
It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical
specification meets the optical fiber connector standards .
The structure of crimping position is a unique design, and need not glue curing, polishing neither any
consumables. Adopting fiber pre-installed structure, and convenient for field installation.
Features
Application
Specification
|
Type |
Parameters |
|
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≤ -40dB |
|
Bare fiber strength |
>5N |
|
Clad strength |
>10N |
|
Tension |
>50N |
|
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
|
Operating Temperature |
5 ºC to +70 ºC |
Order information
