Single Mode Assembly Connector , FC Fiber optic connector Field Installation FTTH
उत्पत्ति के प्लेस | चीन |
---|---|
ब्रांड नाम | YINGDA |
प्रमाणन | ISO SGS ROHS |
मॉडल संख्या | YD-FiC-FC/UPC |
न्यूनतम आदेश मात्रा | 500PCS |
मूल्य | Negotiable |
पैकेजिंग विवरण | 10 pcs / blister box,1500 pcs / carton |
प्रसव के समय | 5 working days after received your payment |
भुगतान शर्तें | T/T or western Union |
आपूर्ति की क्षमता | 500,000pcs per month |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xmaterial | Plastic | house color | Black |
---|---|---|---|
fiber type | single mode | insertion loss | < 0.3 dB |
return loss | > 45 dB,(typical 50dB) | pack | blister box |
हाई लाइट | quick assembly connector,FTTH connector |

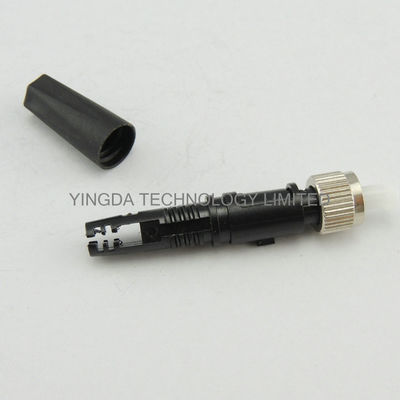

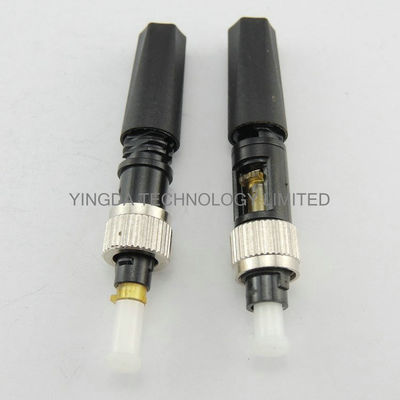

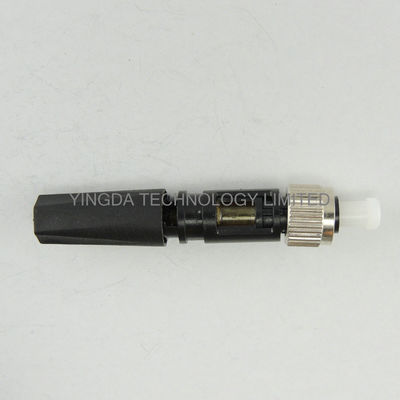

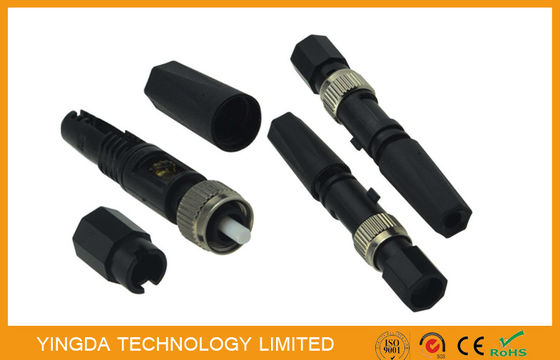

FC Quick Assembly Connector, FC Fiber Optic Fast Connector Field Installation FTTH
Advantage:
- Suitable for; 2mm* 3mm drop fiber cable
- Ceramic V-groove structure, good sealing performance, flame retardant
- Insertion loss: the average ≤ 0.3 dB, MAX ≤ 0.5dB
- Return loss: ≥45dB
- No need epoxy or polished, field-installable, factory embedded fiber
- Fiber Cable cut length: 15mm /10mm
Description
Field Assembly Connector (Fast Connector) is designed for simple and fast field termination of
single fibers, without the additional assembling tools. The heart of the Quick/ fast connector is
a pre-polished ferrule and a mechanical splice inside the connector body. They are widely used
in FTTx, Connecting up Renovation of Computer/controlling Room applications. The installation
process takes about two minutes, and the connector during the installation process does not
require any adhesive and curing process.

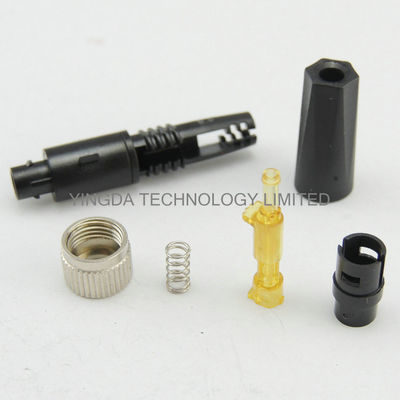

YINGDA provide field assembly connectors with unique design of the patented mechanical
splice body which incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.
It is not only for single-mode or multimode fiber,and can also choose to 900 microns, 3 mm and
the introduction of cable 8 font type.
Features
- Easy assembly process
- Available in LC, SC, and ST connector styles
- Available in multimode or singlemode versions
- Factory polishing eliminates loss concerns
- Fiber can be reseatedNo expensive tools required
- No epoxy required
- Anaerobic adhesive-style, field-installable connectors
- Most robust connection, ideal for indoor and outside plant applications
- Repeatable times is no less than 50 times;
- Long life span design, more than 30 years.
- Precise mechanical dimensions
- Low insertion loss, high return loss
- Comply standard of IEC61754-4
Application
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber / Home (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
Specification
Type |
Parameters |
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Bare fiber strength |
>5N |
Clad strength |
>10N |
Tension |
>50N |
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature |
5 ºC to +70 ºC |
Order information
- Connector: SC/UPC, SC/APC
- Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
- Connector color: black
- Dust cap color: white, green
- Package: 10pcs/set or 1pc/set, customized
- OEM ok
