144 Core FC SC LC ST Connector ODF Fiber Optic Patch Panels Unit Cassette Fully Load
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xWorking temperature | -40~+85 (℃) | Fiber optic type | single-mode |
---|---|---|---|
industry standard | Telcordia TA-NWT-001209 | connector type | FC/PC |
dust cap | red | ||
हाई लाइट | optical distribution frame,sliding patch panel |

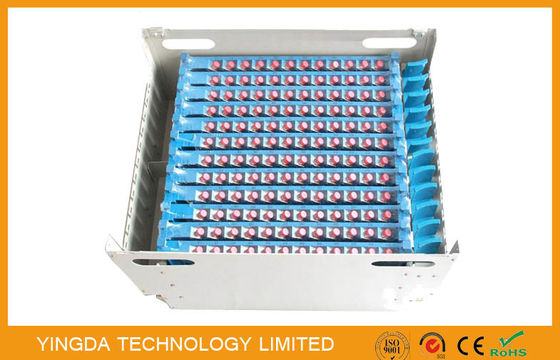

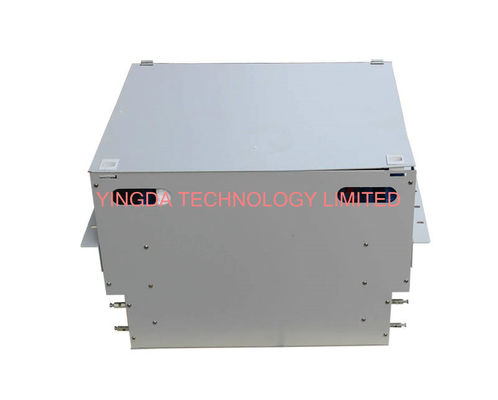

144 Core FC SC LC ST Connector ODF Distribution Frame Fiber Optic Patch Panel Unit Cassette Fully Load
ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,
high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable
distribution in one set, each fused distribution module can be individually extracted, satisfy
the need of on and off the frame operation.
Large capacity optical distribution frame also are good operation, fused distribution module
can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber
optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can
be directly welded.
Main Technical Parameters
- Environment temperature: -5 ~+45°C
- Relatively humidity:≤85% (+30°C)
- Atmospheric pressure:70~166 KPa
- Connector attenuation (Interchangeable and repeat): ≤0.5dB
- Insertion loss: ≤ 0.3dB
- Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
- Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
- Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
- By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
- Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
Structure features
- Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
- The downward and the side door use imported lock
- The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
- Configure reinforced core and cable fixed seat,complete accessories
Performance advantage
- Good sealing performance, flexible configuration, quick installation
- Set three functions: the optical fiber splice, cable storage, cable distribution in one set
- Easy operation, reliable grounding, protect the safety
- The full protection of the jumping fiber, ensure the bending radius ≥ 40mm
Capacity |
Spare parts |
Size/mm |
Net weight/kg |
12 core |
Splice tray, sleeve, buffer tube |
485*300*50 |
3.9 |
24 core |
Splice tray, sleeve, buffer tube |
485*300*75 |
4.7 |
48 coe |
Splice tray, sleeve, buffer tube |
485*300*140 |
6.9 |
96 core |
Splice tray, sleeve, buffer tube |
485*300*252 |
11 |
144Core |
|
|
|
