Pre-assembly 24 Port 24 Fibers FC ODF Patch Panel 1U Rack Cabinet Enclosure

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या GPRP-FC24
न्यूनतम आदेश मात्रा 50 pcs
मूल्य Negotiable
पैकेजिंग विवरण 1 pc / box, 5 pcs / carton box

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
material cold rolled steel thickness 0.8mm,1.0mm, 1.2mm
capacity 24 cores connector port FC or ST ( round port )
application 19" ODF optical distribution frame installatino method rack mount
color white, black dimension 480*200*1U mm
हाई लाइट

optical distribution frame

,

sliding patch panel

एक संदेश छोड़ें
उत्पाद विवरण

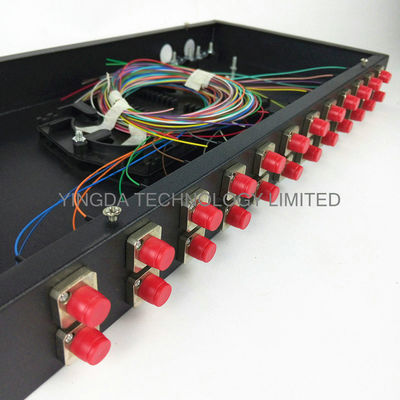

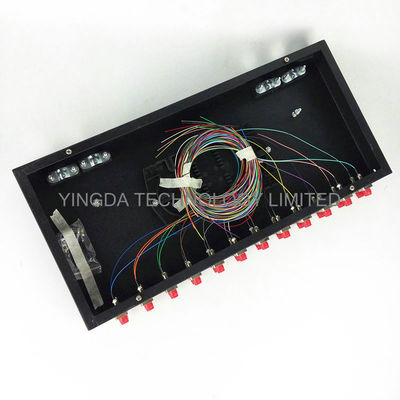

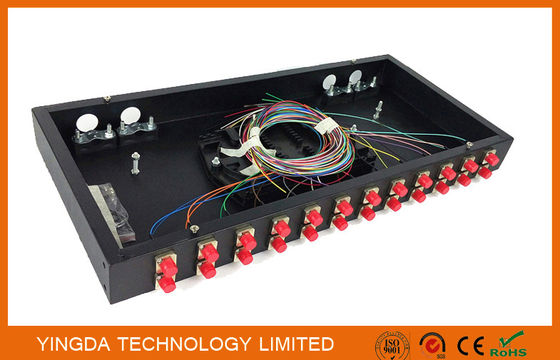

Pre-assembly 24 Port 24 Fibers FC ODF Patch Panel 1U Rack Cabinet Enclosure





This box is for FC square adapter output, so can not use FC/ST round port. But can make FC small

round port,  no worry.





Description



19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.



It is smart design to supply firm protection for optical cable terminal connection and optical fiber

adapter installation. It is a combineof termination, protection, connection, management of fiber

optic cables.



Features

  • Flexible standard 19” cabinet installation
  • Complete front operations with double layers
  • Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
  • Complete bending radii protection
  • Sufficient spooling area for redundant fibers
  • Spooling space for fibers and pigtails to enhance protection for the fibers,  pigtails and connections


 Technical specification:



ambient temperature

-25℃~+40℃

relative humidity

≤85%(+30℃)

atmospheric pressure

70kPa~106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.







Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Complete assembly with adapter and pigtail  OR empty panel optional

2. Box color: Black , White



Pre-assembly 24 Port 24 Fibers FC ODF Patch Panel 1U Rack Cabinet Enclosure 0Pre-assembly 24 Port 24 Fibers FC ODF Patch Panel 1U Rack Cabinet Enclosure 1
