NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator

उत्पत्ति के प्लेस चीन
ब्रांड नाम YINGDA
प्रमाणन ISO
मॉडल संख्या ATTN-LCS-01-B03
न्यूनतम आदेश मात्रा 100PCS
मूल्य Negotiable
पैकेजिंग विवरण 1 pc / plastoc bag
प्रसव के समय 3-5 days
भुगतान शर्तें T/T or western Union
आपूर्ति की क्षमता 50,000pcs per month

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Attenuation 1dB - 20dB fix test wavelength 1310nm, 1550nm
body material Plastic Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
industry standard Telcordia TA-NWT-001209 connector type SC/APC
color dust cap: white, connector body: blue connector shape female to male attenuator
हाई लाइट

build out attenuator

,

inline optical attenuator

एक संदेश छोड़ें
उत्पाद विवरण

LC/UPC Build Out Attenuator, LC F-M Attenuator, LC Fixed Plug In Attenuator



Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter type (known as

male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP

According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

 attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃

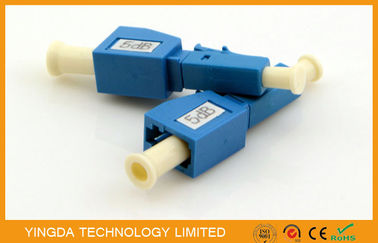

NTT Standard LC / UPC Build Out Fiber Optic Attenuator For Broadband , F-M Attenuator 0
