Fixed Type 10dB , 1 - 20dB Multimode Fiber Attenuator LC/PC For CATV FTTH
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xAttenuation | 10dB | test wavelength | 1310nm, 1550nm |
---|---|---|---|
body material | Plastic | Additional loss | 0.1dB |
Working temperature | -40~+85 (℃) | Fiber optic type | single-mode, multimode |
industry standard | Telcordia TA-NWT-001209 | connector type | SC/APC |
color | dust cap: white, connector body: blue | connector shape | plug in fixed 10dB |
हाई लाइट | optical fiber attenuator,inline optical attenuator |

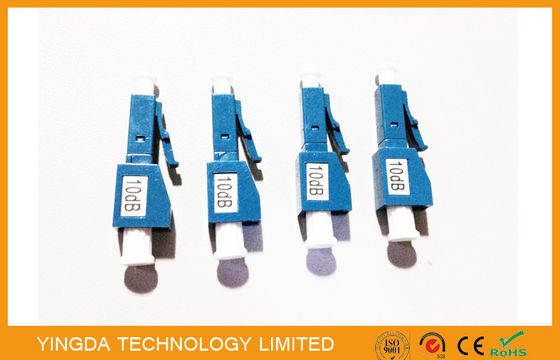

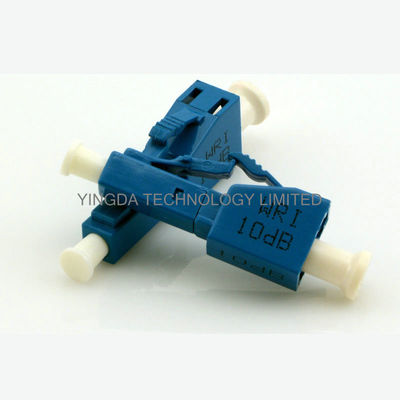

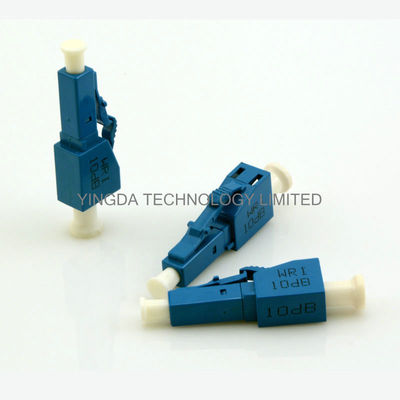

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH
Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution
adjustable attenuator which one end is connector type, the other end is adapter type (known as
male to female) . According to the ferrule end face it can be divided into PC and APC inclined
eight degrees,attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB,
3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
Features
- Single mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Increases panel density and quick plug in installation
- New SC footprint for duplex and 4 way design, more compact for most patch
- Compliant with Bellcore GR-910-CORE
- All parts compliant with ROHS
Application
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTP network
Technical Parameter
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
Attenuation Tolerance(dB) |
1-5dB<±0.5 dB |
5-10dB<±10% |
|
11-25dB<±5% |
|
Operating Wavelength(nm) |
1310±10nm |
1550±10nm |
|
1310 and 1550±10nm |
|
Operating Temperature(℃) |
-40℃~+75℃ |
